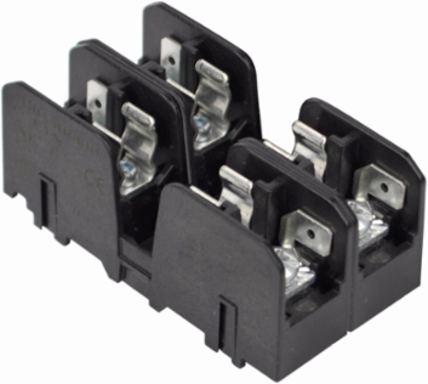

Bussmann BMM603-2SQ Fuse Blocks, 600V, 30A, Two-pole, Screw/Quick Connect
- MPN: BMM603-2SQ
- UPC: 051712486460
- PPN: BUS-BMM603-2SQ
CAD
$15.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Fuse Blocks, 600V, 30A, Two-pole, Screw/Quick Connect
Features
- Explicitly engineered to accommodate two standard 1-1/2 in times 13/32 in (10 times 38 mm) Midget fuses, this block provides a precise, gap-free physical fit. It eliminates installation guesswork and ensures full compatibility with high-performance fuse families like Bussmann KTK, FNQ, and BAF, preventing localized overheating and nuisance trips in demanding control systems.
- Featuring a compact, molded 2-pole modular footprint, this fuse block maximizes available backplate area without sacrificing electrical clearance. The streamlined, side-by-side architecture allows automation technicians to consolidate multiple control circuit protection lines within busy motor control centers and small machine enclosures.
- Boasting a heavy-duty 600V AC/DC voltage rating and a robust 30-amp current capacity, this thermoplastic fuse block delivers highly reliable circuit isolation for industrial infrastructure. It easily handles harsh control transformers, pilot circuits, and solenoid loads, preventing tracking failures and maintaining a high 200kA Short-Circuit Current Rating (SCCR) when paired with appropriate current-limiting fuses.
- Molded from premium, high-temperature UL 94V-0 rated thermoplastic, the block is engineered for extreme structural stability and self-extinguishing safety under fire hazards. It withstands severe thermal expansion and high-amp faults without fracturing, ensuring your sensitive industrial control enclosures remain safe and fully code-compliant.
- Designed with integrated mounting slots, this block can be screwed directly down onto an enclosure backplate or effortlessly snapped onto standard 35 mm DIN rails. This flexibility eliminates installation bottlenecks, allowing field technicians to adapt to shifting on-site design-build requirements without needing extra brackets or custom mounting hardware.
Documentation & Downloads
Specifications
Additional
- Amperage
- 30A
- Short Circuit Rating
- 200 kA
- Connection
- Screw/Quick Connect
- Product Length/Depth
- .001 in
- Product Width
- .001 in
- Certification
- UL Recognized, CSA Certified
- UPC
- 051712486460
Voltage600V
Number of PolesTwo-pole
Product Weight0.1 lb
Product Height.001 in
CompliancesRoHS Compliant, CE Marked
WarrantyNot Applicable
TypeFuse Blocks
