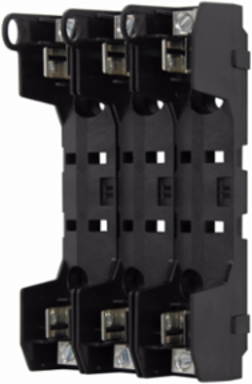

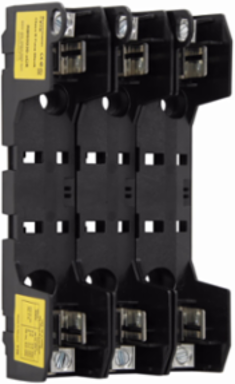

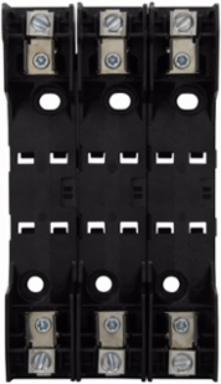

Bussmann HM60030-3CR Modular Fuse Block, 600V, 0-30A, Three-pole, 6.2 Inch Length
- MPN: HM60030-3CR
- UPC: 051712511476
- PPN: BUS-HM60030-3CR
CAD
$77.72
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Eaton Bussmann series HM modular fuse block, CR, 0-30 A, Three-pole, Class H, Class K, 10 kA, 10 kAIC, 600 V
Features
- Built to handle demanding electrical distributions, this heavy-duty fuse block supports operating voltages up to 600VAC and carries a 10kA short-circuit current rating (SCCR). This robust construction provides reliable, code-compliant overcurrent protection for plant equipment, protecting expensive downstream components from catastrophic electrical faults.
- Featuring an innovative modular profile with the narrowest footprint on the market, this 3-pole block maximizes precious DIN-rail or panel layout area. The tight footprint allows electrical control panel builders to scale up protection without upgrading to a larger, more expensive junction box or control cabinet.
- Constructed with a high-grade, premium thermoplastic body and integrated standard clip-reinforcing springs, this open-style block prevents terminal degradation over decades of service life. The spring-reinforced clips maintain reliable mechanical pressure on the fuse ferrules, mitigating temperature rises and safeguarding your circuits against nuisance trips and resistance arcs.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600V
- Short-Circuit Rating
- 10 kA
- Length
- 6.2 in
- Height
- 2.25 in
- Class
- Class H, K
- Compliance
- RoHS, UL Listed, CSA
Amperage0-30A
Number of PolesThree-pole
Width3.48 in
Weight0.45 lb
TypeModular fuse block
