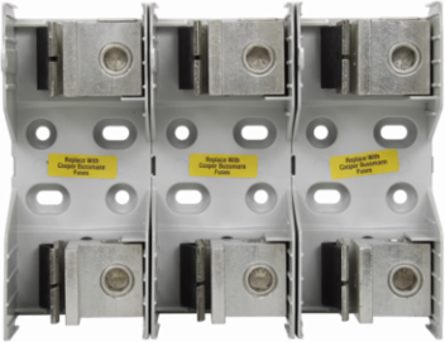

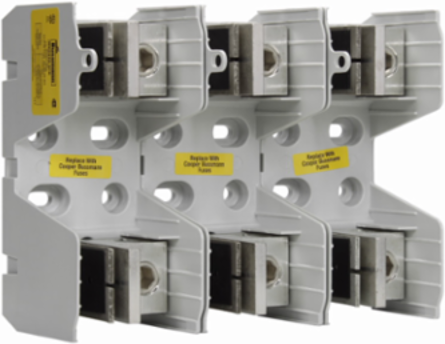

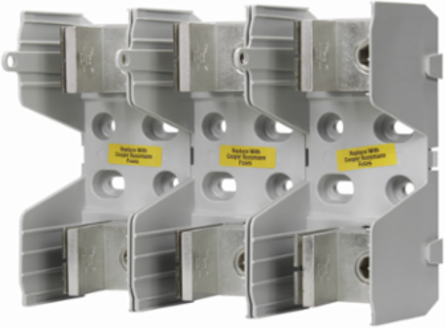

Bussmann JM60400-3CR Modular Fuse Block 600V 225-400A Three-Pole Knife Blade End 4.1 Inch x 8 Inch
- MPN: JM60400-3CR
- UPC: 051712387057
- PPN: BUS-JM60400-3CR
CAD
$1272.32
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Modular Fuse Block 600V 225-400A Three-Pole Knife Blade End 4.1 Inch x 8 Inch
Features
- Precision-engineered exclusively for Class J knife-blade fuses rated from 225A to 400A, the JM60400-3CR ensures an exact mechanical and electrical fit. This specific configuration guarantees seamless compatibility with industry-standard safety components like Low-Peak™ LPJ, Limitron™ JKS, and DFJ fuses, avoiding costly alignment issues and protecting critical machinery down the line.
- Boasting a massive 200 kAIC short-circuit current rating (SCCR) at 600V AC, this robust, three-pole fuse block provides elite overcurrent protection for demanding industrial applications. It safeguards your downstream branch circuits and control panels against catastrophic thermal damage during major fault events, keeping your facility compliant with stringent National Electrical Code (NEC) regulations.
- Built to exceed standard industrial specifications, this modular power fuse block satisfies the elevated UL creep and clearance requirements mandated by UL 508, UL 845, and UL 98. Featuring built-in phase barriers between the poles, it aggressively prevents phase-to-phase shorting or arcing, ensuring the highest level of operator safety within dense electrical enclosures.
- Outfitted with standard fuse clip reinforcing springs, the unit maintains constant, high-pressure mechanical contact with the fuse blades to minimize resistance and combat heat generation over time. The versatile terminal lugs securely house wire sizes ranging from 4 AWG up to 600 kcmil (or dual 4 to 3/0 AWG lines), simplifying heavy-gauge panel wiring while significantly reducing the risk of loose connections or hot spots.
Documentation & Downloads
Specifications
Additional
- Amperage
- 225-400A
- Interrupt Rating
- 200 kAIC
- Class
- Class J
- Connection Type
- Knife Blade End x Knife Blade End
- Width
- 4.1 in
- Weight
- 6.5 lb
- Compliance
- RoHS Compliant, CE Marked
Voltage600V
Short Circuit Rating200 kA
Number of PolesThree-pole
Length8 in
Height1.25 in
MaterialModular fuse block
CertificationUL Listed, CSA Certified
