Bussman

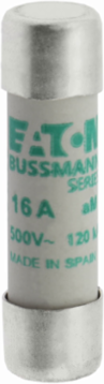

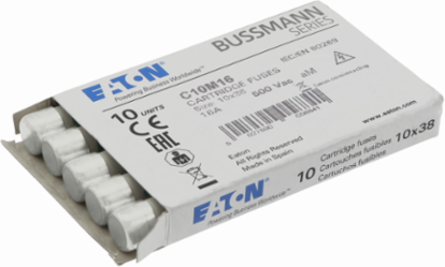

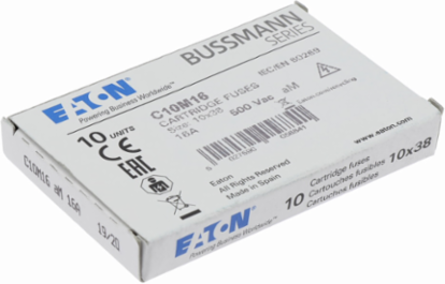

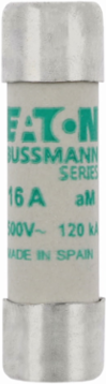

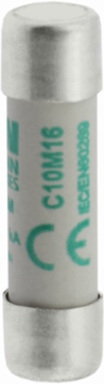

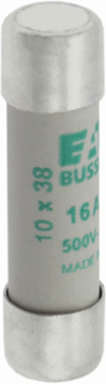

Bussman C10M16 Low Voltage 10 x 38 mm Cylindrical Fuse, 500 V AC, 16 A, 120 kA Breaking Capacity

Low Voltage 10 x 38 mm Cylindrical Fuse, 500 V AC, 16 A, 120 kA Breaking Capacity
Low Voltage 10 x 38 mm Cylindrical Fuse, 500 V AC, 16 A, 120 kA Breaking Capacity
Low Voltage 10 x 38 mm Cylindrical Fuse, 500 V AC, 16 A, 120 kA Breaking Capacity
Low Voltage 10 x 38 mm Cylindrical Fuse, 500 V AC, 16 A, 120 kA Breaking Capacity
Low Voltage 10 x 38 mm Cylindrical Fuse, 500 V AC, 16 A, 120 kA Breaking Capacity
Low Voltage 10 x 38 mm Cylindrical Fuse, 500 V AC, 16 A, 120 kA Breaking Capacity
  • MPN: C10M16
  • UPC: 051712754606
  • PPN: BUS-C10M16

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$27.95/ EA

Specifications

Specifications

Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Material
Ceramic body
Amperage Rating
16 A
Utilization category
aM (switchgear protection)
Type
fuse
Breaking capacity
120 kA
Frequency rating - min
45 Hz
Voltage rating
500 V
Voltage type
AC
Construction size10 mm x 38 mm
Quantity10
Release characteristicOther
Frequency rating - max62 Hz
Fuse typeCylindrical
Fuse shapeCylindrical
Fuse size10 x 38 mm
ClassClass aM
Applicationmotor protection | for industrial applications
Packaging typeStandard

General

UPC
051712754606
Product Length/Depth
38 mm
Product Width
10 mm
Warranty
1 year limited
Certifications
IEC 60269
EAN5027590493666
Product Height10 mm
Product Weight8.2 g
CompliancesContact factory
