Bussmann

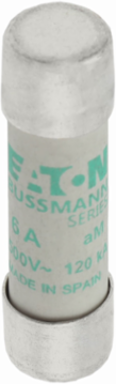

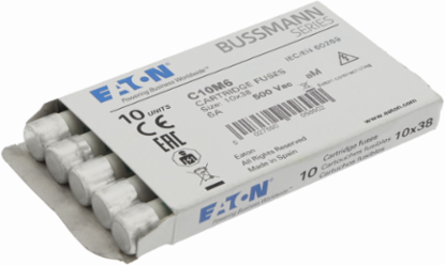

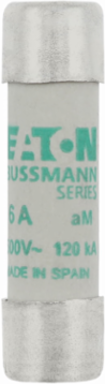

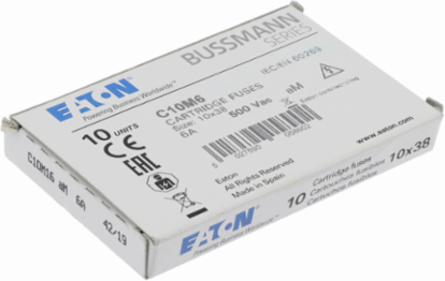

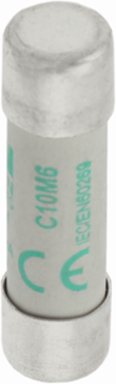

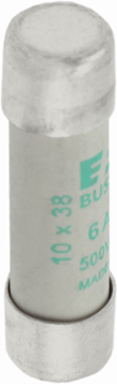

Bussmann C10M6 Eaton Bussmann series low voltage 10 x 38 mm cylindrical/ferrule fuse, rated at 500 Volts AC, 6 Amps, 120 kA Breaking capacity, class aM, without indicator, compatible with a CHM Modular fuse holder

Eaton Bussmann series low voltage 10 x 38 mm cylindrical/ferrule fuse, rated at 500 Volts AC, 6 Amps, 120 kA Breaking capacity, class aM, without indicator, compatible with a CHM Modular fuse holder
Eaton Bussmann series low voltage 10 x 38 mm cylindrical/ferrule fuse, rated at 500 Volts AC, 6 Amps, 120 kA Breaking capacity, class aM, without indicator, compatible with a CHM Modular fuse holder
Eaton Bussmann series low voltage 10 x 38 mm cylindrical/ferrule fuse, rated at 500 Volts AC, 6 Amps, 120 kA Breaking capacity, class aM, without indicator, compatible with a CHM Modular fuse holder
Eaton Bussmann series low voltage 10 x 38 mm cylindrical/ferrule fuse, rated at 500 Volts AC, 6 Amps, 120 kA Breaking capacity, class aM, without indicator, compatible with a CHM Modular fuse holder
Eaton Bussmann series low voltage 10 x 38 mm cylindrical/ferrule fuse, rated at 500 Volts AC, 6 Amps, 120 kA Breaking capacity, class aM, without indicator, compatible with a CHM Modular fuse holder
Eaton Bussmann series low voltage 10 x 38 mm cylindrical/ferrule fuse, rated at 500 Volts AC, 6 Amps, 120 kA Breaking capacity, class aM, without indicator, compatible with a CHM Modular fuse holder
  • MPN: C10M6
  • UPC: 051712754569
  • PPN: BUS-C10M6

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$27.95/ EA

Description

Eaton Bussmann series low voltage 10 x 38 mm cylindrical/ferrule fuse, rated at 500 Volts AC, 6 Amps, 120 kA Breaking capacity, class aM, without indicator, compatible with a CHM Modular fuse holder

Specifications

Specifications

Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Material
Ceramic body
Release characteristic
Other
Frequency rating - max
62 Hz
Fuse type
Cylindrical
Fuse shape
Cylindrical
Fuse size
10 x 38 mm
Class
Class aM
Application
motor protection | for industrial applications
Packaging type
Standard
Construction size10 mm x 38 mm
Quantity10
Mounting methodHolder
Amperage Rating6 A
Utilization categoryaM (switchgear protection)
Typefuse
Breaking capacity120 kA
Frequency rating - min45 Hz
Voltage rating500 V
Voltage typeAC

General

UPC
051712754569
Product Length/Depth
38 mm
Product Width
10 mm
Warranty
1 year limited
Certifications
IEC 60269
EAN5027590493727
Product Height10 mm
Product Weight8.2 g
CompliancesContact factory
