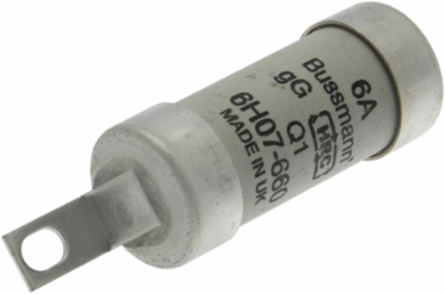

Bussmann 6H07-660 Low Voltage Fuse 6A 660V AC/DC 80KA 22x82mm Class C gL/gG
- MPN: 6H07-660
- UPC: 051712674348
- PPN: BUS-6H07-660
CAD
$86.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Low Voltage Fuse 6A 660V AC/DC 80KA 22x82mm Class C gL/gG
Documentation & Downloads
Specifications
Key Specifications
| Height | 23 MM |
|---|---|
| Width | 23 MM |
| Type | fuse |
| Voltage Rating | 660 Vac, 250 Vdc |
| Amperage Rating | 6A |
| Interrupt Rating | 80 kAIC |
| Construction Size | 22 x 82 mm |
| Fuse Indicator | None |
| Fuse Shape | offset bolted tags |
| Utilization Category | gL/gG (cable protection/equipment protection) |
| Construction | BS88/A2 |
| Length | 84 MM |
|---|---|
| Weight | 53.5 G |
| Application | general industrial applications |
| Voltage Rating Numeric | 660 V |
| Amperage Rating Numeric | 6 A |
| Class | Class C gL/gG |
| Packaging Type | Standard |
| Breaking Capacity | 80 KA |
| Insulated Metal Gripping Lugs (IMGL) | No |
| Voltage Type | AC/DC |
| Rated switching capacity | 80 A |
