Bussman

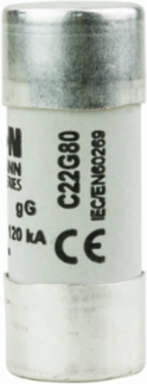

Bussman C22G80 Low Voltage Cylindrical Fuse, 500V, 80A, Ceramic Body, 22 x 58 mm

Low Voltage Cylindrical Fuse, 500V, 80A, Ceramic Body, 22 x 58 mm
Low Voltage Cylindrical Fuse, 500V, 80A, Ceramic Body, 22 x 58 mm
  • MPN: C22G80
  • UPC: 051712754507
  • PPN: BUS-C22G80

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$82.60/ EA

Specifications

Specifications

Fuse Indicator
CH22 fuse holder
Connection
Ferrule end X ferrule end
Material Type
Ceramic body, Silver-plated copper endcap
Amperage Rating
80A
Utilization Category
gL/gG (cable protection/equipment protection)
Type
fuse
Breaking Capacity
120 KA
With Striker
No
Class
Class C gL/gG
Application
for industrial applications
Voltage Type
AC
Construction Size22 x 58 mm
Quantity10 per package
Release CharacteristicOther
Frequency Rating Maximum45 HZ
Fuse TypeCylindrical
Fuse Shapecylindrical
Amperage Rating Numeric80 A
Frequency Rating Minimum62 HZ
Voltage Rating500V
Voltage Rating Numeric500 V
Packaging TypeStandard

General

UPC
051712754507
Product Length/Depth
58 MM
Product Width
22.2 MM
Warranty
1 year limited
Certifications
IEC 60269
EAN5027590495561
Product Height58 MM
Product Weight58 G
CompliancesContact factory
