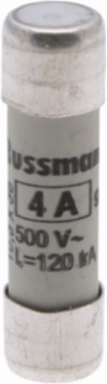

Bussmann C10G4 Eaton Bussmann series low voltage cylindrical fuse, 500V, 4A, 120 kAIC, CHM fuse holder, fuse, Ferrule end X ferrule end, Class C gL/gG, Cylindrical, Ceramic body, Silver-plated copper endcap
Bussmann C10G4 Eaton Bussmann series low voltage cylindrical fuse, 500V, 4A, 120 kAIC, CHM fuse holder, fuse, Ferrule end X ferrule end, Class C gL/gG, Cylindrical, Ceramic body, Silver-plated copper endcap
- MPN: C10G4
- UPC: 051712754231
- PPN: BUS-C10G4
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$21.25/ EA
Description
Eaton Bussmann series low voltage cylindrical fuse, 500V, 4A, 120 kAIC, CHM fuse holder, fuse, Ferrule end X ferrule end, Class C gL/gG, Cylindrical, Ceramic body, Silver-plated copper endcap
Specifications
Specifications
- Fuse Indicator
- CHM fuse holder
- Construction Size
- 10 x 38 mm
- Quantity
- 10 per package
- Release Characteristic
- Other
- Frequency Rating Maximum
- 45 HZ
- Fuse Type
- Cylindrical
- Fuse Shape
- cylindrical
- Amperage Rating Numeric
- 4 A
- Frequency Rating Minimum
- 62 HZ
- Voltage Rating
- 500V
- Voltage Rating Numeric
- 500 V
- Packaging Type
- Standard
Interrupt Rating120 kAIC
ConnectionFerrule end X ferrule end
Material TypeCeramic body, Silver-plated copper endcap
Amperage Rating4A
Utilization CategorygL/gG (cable protection/equipment protection)
Typefuse
Breaking Capacity120 KA
With StrikerNo
ClassClass C gL/gG
Applicationfor industrial applications
Voltage TypeAC
General
- UPC
- 051712754231
- Product Length/Depth
- 38 MM
- Product Width
- 10 MM
- Warranty
- 1 year limited
- Certifications
- IEC 60269
EAN5027590493543
Product Height38 MM
Product Weight38 G
CompliancesContact factory
