Bussman

Bussman C10G1 Low Voltage Cylindrical Fuse 500V 1A 10 x 38 mm Ceramic Body gL/gG

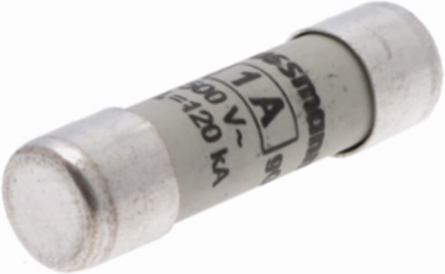

Low Voltage Cylindrical Fuse 500V 1A 10 x 38 mm Ceramic Body gL/gG
  • MPN: C10G1
  • UPC: 051712754217
  • PPN: BUS-C10G1

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$25.85/ EA

Specifications

Specifications

Fuse Indicator
CHM fuse holder
Connection
Ferrule end X ferrule end
Material Type
Ceramic body, Silver-plated copper endcap
Amperage Rating
1A
Utilization Category
gL/gG (cable protection/equipment protection)
Type
fuse
Breaking Capacity
120 KA
With Striker
No
Class
Class C gL/gG
Application
for industrial applications
Voltage Type
AC
Construction Size10 x 38 mm
Quantity10 per package
Release CharacteristicOther
Frequency Rating Maximum45 HZ
Fuse TypeCylindrical
Fuse Shapecylindrical
Amperage Rating Numeric1 A
Frequency Rating Minimum62 HZ
Voltage Rating500V
Voltage Rating Numeric500 V
Packaging TypeStandard

General

UPC
051712754217
Product Length/Depth
38 MM
Product Width
10 MM
Warranty
1 year limited
Certifications
IEC 60269
EAN5027590493383
Product Height38 MM
Product Weight38 G
CompliancesContact factory
