Bussman

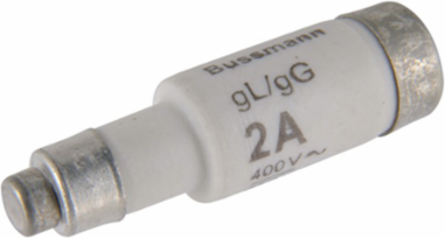

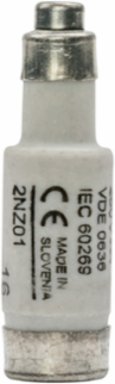

Bussman 2NZ01 Low Voltage D0 Fuse 2A 400V Time-Delay Ceramic Body

Low Voltage D0 Fuse 2A 400V Time-Delay Ceramic Body
Low Voltage D0 Fuse 2A 400V Time-Delay Ceramic Body
  • MPN: 2NZ01
  • UPC: 051712833516
  • PPN: BUS-2NZ01

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$26.23/ EA

Specifications

Specifications

Height
36 MM
Width
11 MM
Type
fuse
Application
E14 | for domestic and general industrial applications
Voltage Rating Numeric
400 V
Amperage Rating Numeric
2 A
Class
Class C gL/gG
Construction Size
D01
Mounting
Holder
Quantity
10 per package
Response Time
time-delay
Utilization Category
gL/gG (cable protection/equipment protection)
Length36 MM
Weight36 G
Special FeaturesTime-delay
Voltage Rating400V
Amperage Rating2A
Interrupt Rating100 kAIC
ColorPink
Material TypeCeramic body
Packaging TypeStandard
Fuse IndicatorNon Indicating
Breaking Capacity50 KA
