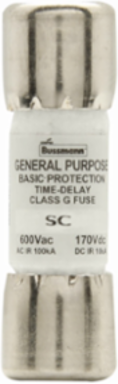

Bussmann SC-3 Current-Limiting Fuse, 3A, 600 Vac, 0.41 Inch Diameter, Class G
- MPN: SC-3
- UPC: 051712250030
- PPN: BUS-SC-3
CAD
$14.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Current-Limiting Fuse, 3A, 600 Vac, 0.41 Inch Diameter, Class G
Specifications
Key Specifications
| Fuse Indicator | Non Indicating |
|---|---|
| Interrupt Rating | 100 kAIC at 600 Vac, 10 kAIC at 170 Vdc |
| Connection | Ferrule end X ferrule end |
| Voltage Rating | 600 Vac, 170 Vdc |
| Diameter | .41 IN |
| Special Features | Rejection style |
|---|---|
| Type | Current-limiting, fast acting |
| Class | Class G |
| Amperage Rating | 3A |
| Packaging Type | Standard |
General
| UPC | 051712250030 |
|---|---|
| Product Height | .41 IN |
| Product Weight | .163 LB |
| Compliances | RoHS Compliant |
| Product Length/Depth | 1.31 IN |
|---|---|
| Product Width | .41 IN |
| Warranty | Not Applicable |
