Time-Delay Fuse, 20A, 600 Vac/300 Vdc, Glass Filled PES, 1.88 Inch Length

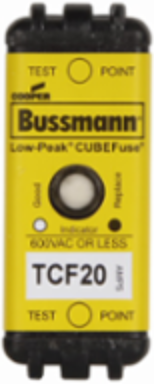

Bussmann TCF20 Time-Delay Fuse, 20A, 600 Vac/300 Vdc, Glass Filled PES, 1.88 Inch Length

MPN: TCF20
UPC: 051712615013
PPN: BUS-TCF20

CAD

$51.82

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Time-Delay Fuse, 20A, 600 Vac/300 Vdc, Glass Filled PES, 1.88 Inch Length

Specifications

Key Specifications

Fuse Indicator: With Indicator

Interrupt Rating: 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc

Color: Black body

Response Time: 10 s at 500%

Amperage Rating: 20A

Mounting: 35 mm Din Rail, chassis

Type: Time-delay fuse

Amperage Rating Numeric: 20 A

Class: Class CF

Application: Electrical panelboards, industrial control, machinery disconnects, required finger safe systems

Packaging Type: Standard

Special FeaturesFinger safe

Number Of ElementsDual

ConnectionBlade End

Material TypeGlass filled PES

Frequency Rating Maximum60 HZ

Fuse TypeTime-Delay, class CF

Used WithTCFH30N, CCP2-3-30CF

Frequency Rating Minimum50 HZ

Voltage Rating600 Vac, 300 Vdc

Voltage Rating Numeric600 V

General

UPC: 051712615013

Product Length/Depth: 1.88 IN

Product Width: .75 IN

Warranty: Not Applicable

Certifications: UL Listed

EAN5027590116954

Product Height1.75 IN

Product Weight.08 LB

CompliancesCE Marked
