Cooper Wiring Devices TR7735W-BOX Nightlight with Single Receptacle, 15A, 125V, Tamper Resistant, Decorator, White
- MPN: TR7735W-BOX
- UPC: 032664727689
- PPN: COW-TR7735W-BOX
CAD
$32.92
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

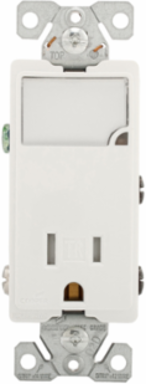

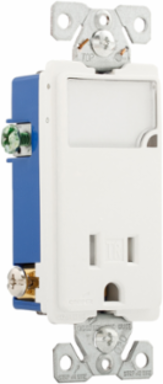

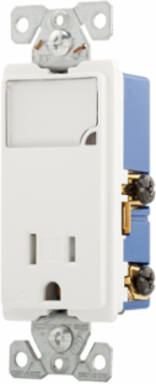

Eaton combination nightlight with receptacle, Tamper resistant, #14-12 AWG, 15A, Flush mount, 120/277V, Back and side wiring, White, Brass, 5-15R, Two-pole, three-wire, grounding, Decorator, Thermoplastic
Documentation & Downloads
Specifications
Key Specifications
- Amperage Rating
- 15A
- Number of Poles
- Two-pole
- Wattage
- 1W
- Height
- 4.25 in
- Length
- 2 in
- Material
- Thermoplastic
- Style
- Decorator
- Mounting Method
- Flush
- Receptacle Type
- Two-pole, three-wire, grounding
Voltage Rating125 V
Number of WiresThree-wire
Torque Rating14 lbf-inch
Width2 in
Allowable Wire Size#12-14 AWG
Contact MaterialBrass
ColorWhite
Wiring MethodScrew terminals
NEMA Configuration5-15R
