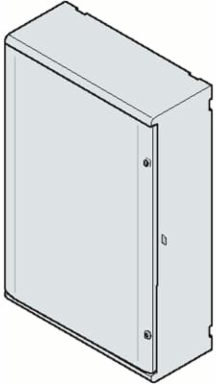

ABB 1SL0203A00 GMB3T IP66 Insulating switchboards
- MPN: 1SL0203A00
- UPC: 888614133006
- PPN: ABB-1SL0203A00
CAD
$502.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
IP66 SWITCHBOARD OPAQUE DOOR-SIZE 3;IP66 SWITCHBOARD OPAQUE DOOR-SIZE 3
Specifications
Installation
| Instructions and Manuals | 9AKK107992A4361 |
|---|
Dimensions
| Product Net Width | 712.000 mm |
|---|---|
| Product Net Depth / Length | 470.000 mm |
| Size | 3 |
| Product Net Height | 322.000 mm |
|---|---|
| Product Net Weight | 10.650 kg |
Technical
| Power Loss | 85 W |
|---|---|
| Configuration Type | Complete switchboard |
| Mounting Type | wall-mounting |
| Door Surface Finishing | Opaque |
| Material | Plastic |
| Model Number | Protective door |
| Color | grey |
| Number of Rows | 4 |
|---|---|
| Enclosure Type NEMA | Type4X |
| Surface Finishing | Untreated |
| Enclosure Material | thermoplastic |
| DIN Place Units | 72 |
| RAL Number | RAL 7035 - Light Grey |
Classifications
| ETIM 9 | EC000747 - Door/operating panel (enclosure/cabinet) |
|---|---|
| eClass | V11.0 : 27182204 |
| WEEE Category | Product Not in WEEE Scope |
|---|---|
| Object Classification Code | U |
Environmental
| Degree of Protection | IP66 |
|---|---|
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Environmental Information | 1SLC805001D0907 |
| Protection Class | Isolated (Class II) |
|---|---|
| RoHS Information | 9AKK107046A4790 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
Ordering
| Minimum Order Quantity | 1 piece |
|---|---|
| Package Level 1 Gross Weight | 10.930 kg |
| Package Level 1 Units | box 1 piece |
|---|
