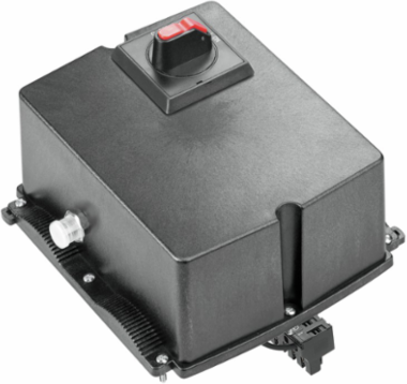

Weidmuller 8000005211 GHDE 10P HO ON/OFF PTS4

MPN: 8000005211
PPN: WDM-8000005211

$547.64

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Enclosures, IP65 with corresponding housing, Polycarbonate, GF 10

Documentation & Downloads

Specifications

Dimensions And Weights

Net weight	900 g

General Information #96 Connectors

UL 94 flammability rating	5VA

Classifications

ETIM 6.0	EC000747
eClass 9.0	27-18-22-04
eClass 10.0	27-18-22-04

ETIM 7.0	EC000747
eClass 9.1	27-18-92-90

Temperatures

Operating temperature, max.	45 °C
Storage temperature, max.	80 °C
Operating temperature	-40 °C...45 °C

Operating temperature, min.	-40 °C
Storage temperature, min.	-40 °C
Storage temperature	-40 °C...80 °C

General Specifications

Halogen	No
Protection degree	IP65 with corresponding housing
Colour	black
Lid attachment	Cross-head screws PZ2

Insulating material	Polycarbonate, GF 10
Silicone	No
UL 94 flammability rating	5VA

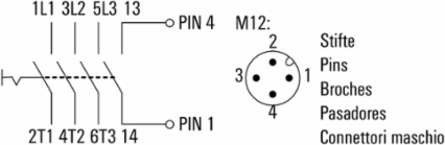

Technical Data Switch

Clamping range, plug, max.	10 mm²
Operating voltage	440 V
Pollution severity	3
Rated current AC-23A	16 A
Terminals - torque	0.8 Nm
Wire connection cross section AWG, min.	AWG 8

Clamping range, plug, min.	0.75 mm²
Plug standards	IEC 60947-3
Power rating AC-23A	7.5 kW
Switch type	ABB OT16ET3
Wire connection cross section AWG, max.	AWG 18
auxiliary contact	ABB OA1G10
