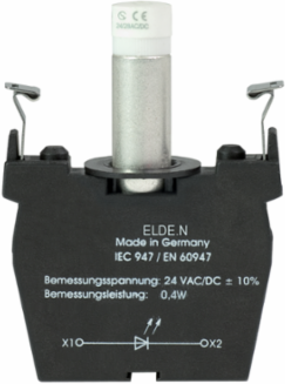

Schmersal 101165999 Light Terminal Block ELD with Integrated LED, 24 VAC/DC, 60 mm Depth, 20 g Weight
- MPN: 101165999
- PPN: SCM-101165999
CAD
$88.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Light Terminal Block ELD with Integrated LED, 24 VAC/DC, 60 mm Depth, 20 g Weight
Documentation & Downloads
Specifications
Key Specifications
- Length
- 46 mm
- Depth
- 60 mm
Width10 mm
Electrical data
- Rated operating voltage
- 24 VAC
Rated operating voltage24 VDC
Mechanical data - Dimensions
- Width
- 10 mm
Depth60 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 440 V
General data - Features
- Integral system diagnostics, general
- Yes
General data
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
- Design
- With integrated LED
- Enclosure material
- Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
VersionsLED modulet
Installation conditions (mechanical)arbitrarily
Gross weight20 g
Ambient conditions
- Degree of protection of clips or terminals
- IP20
Ambient temperature-25 ... +80 °C
Mechanical data - Connection technique
- Termination
- Screw terminals
- Cable section, minimum
- 0.5 mm², rigid | 0.5 mm², flexible
Terminal designationsEN 50005 | EN 50013
Cable section, maximum2.5 mm², rigid | 1.5 mm², flexible
Mechanical data
- Installation instructions
- pluggable
Mounting flange position3
Approvals - Standards
- Certificates
- cULus | CCC
Status indication
- Colour of the LED
- Blue
Note (LED switching conditions display)Supply voltage UB: 24 VAC/DC
