Schmersal 101165997 ELDE.NGN24

ELDE.NGN24 - https://media.province-electric.com/web_schmersal/2023q2/images/medium/c0d5ca276ab2f8744c2a0d4ee9c38f7f2e54b79e-medium.png

ELDE.NGN24 - https://media.province-electric.com/web_schmersal/2023q2/images/medium/95790cebe6de1a094910b0563043088876705110-medium.png

ELDE.NGN24

ELDE.NGN24

ELDE.NGN24

Schmersal 101165997 ELDE.NGN24

MPN: 101165997
PPN: SCM-101165997

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$88.20/ EA

Loading add to cart quantity...

Description

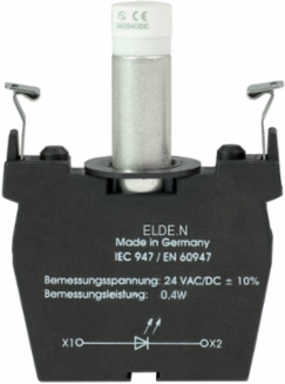

ELDE.NGN24

Specifications

Electrical data

Rated operating voltage: 24 VAC

Rated operating voltage24 VDC

Mechanical data - Dimensions

Width: 10 mm

Depth60 mm

Ambient conditions - Insulation values

Rated insulation voltage U: 440 V

General data - Features

Integral system diagnostics, general: Yes

General data

Standards: EN IEC 60947-5-1 | EN IEC 60947-1

Design: With integrated LED

Enclosure material: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

VersionsLED modulet

Installation conditions (mechanical)arbitrarily

Gross weight20 g

Ambient conditions

Degree of protection of clips or terminals: IP20

Ambient temperature-25 ... +80 °C

Mechanical data - Connection technique

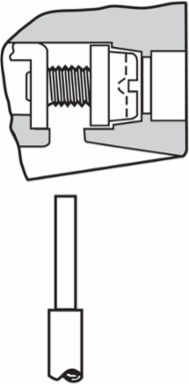

Termination: Screw terminals

Cable section, minimum: 0.5 mm², rigid | 0.5 mm², flexible

Terminal designationsEN 50005 | EN 50013

Cable section, maximum2.5 mm², rigid | 1.5 mm², flexible

Mechanical data

Installation instructions: pluggable

Mounting flange position3

Specifications

Length: 46 mm

Depth: 60 mm

Width10 mm

Approvals - Standards

Certificates: cULus | CCC

Status indication

Colour of the LED: Green

Note (LED switching conditions display)Supply voltage UB: 24 VAC/DC
