Schmersal 101166023 Light Terminal Block with Integrated LED, 30 mm Width, 250 VAC
- MPN: 101166023
- PPN: SCM-101166023
CAD
$157.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Light Terminal Block with Integrated LED, 30 mm Width, 250 VAC
Documentation & Downloads
Specifications
Key Specifications
| Length | 46 mm |
|---|---|
| Depth | 60 mm |
| Width | 30 mm |
|---|
Electrical data
| Operating voltage | 250 VAC -10 % / +10 % |
|---|
| Rated operating voltage | 250 VAC |
|---|
Mechanical data - Dimensions
| Width | 30 mm |
|---|
| Depth | 60 mm |
|---|
Ambient conditions - Insulation values
| Rated insulation voltage U | 440 V |
|---|
General data - Features
| Integral system diagnostics, general | Yes |
|---|
General data
| Standards | EN IEC 60947-5-1 | EN IEC 60947-1 |
|---|---|
| Design | With integrated LED |
| Enclosure material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Versions | LED modulet |
|---|---|
| Installation conditions (mechanical) | arbitrarily |
| Gross weight | 25 g |
Ambient conditions
| Degree of protection of clips or terminals | IP20 |
|---|
| Ambient temperature | -25 ... +80 °C |
|---|
Mechanical data - Connection technique

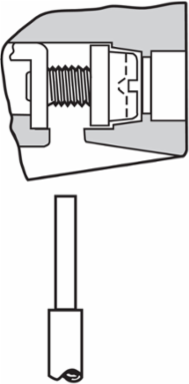

| Termination | Screw terminals |
|---|---|
| Cable section, minimum | 0.5 mm², rigid | 0.5 mm², flexible |
| Terminal designations | EN 50005 | EN 50013 |
|---|---|
| Cable section, maximum | 2.5 mm², rigid | 1.5 mm², flexible |
Mechanical data
| Installation instructions | pluggable |
|---|
| Mounting flange position | 3 |
|---|
Approvals - Standards
| Certificates | cULus | CCC |
|---|
Status indication
| Colour of the LED | Green |
|---|
| Note (LED switching conditions display) | Supply voltage UB: 230 VAC |
|---|
