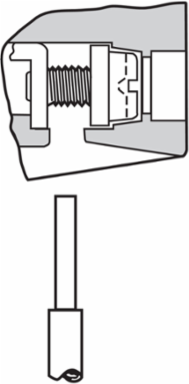

Schmersal 101006529 Light Terminal Block EL, 10 mm Width, 46 mm Length, IP20 Protection
- MPN: 101006529
- PPN: SCM-101006529
CAD
$34.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Light Terminal Block EL, 10 mm Width, 46 mm Length, IP20 Protection
Documentation & Downloads
Specifications
Key Specifications
| Length | 46 mm |
|---|---|
| Depth | 60 mm |
| Width | 10 mm |
|---|
Mechanical data - Dimensions
| Width | 10 mm |
|---|
| Depth | 60 mm |
|---|
General data
| Standards | EN IEC 60947-5-1 | EN IEC 60947-1 |
|---|---|

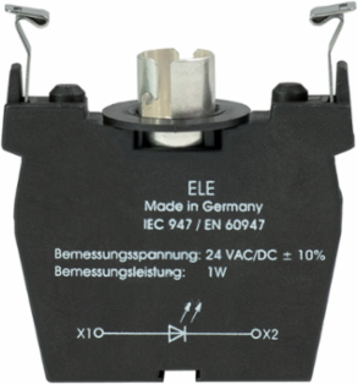

| Design | Light element with Ba9S socket |
| Enclosure material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Note | Print with LED symbol |
| Versions | Luminaire element |
|---|---|
| Installation conditions (mechanical) | arbitrarily |
| Gross weight | 19 g |
Ambient conditions
| Degree of protection of clips or terminals | IP20 |
|---|
| Ambient temperature | -25 ... +80 °C |
|---|
Mechanical data - Connection technique
| Termination | Screw terminals M20 x 1.5 |
|---|---|
| Cable section, maximum | 2.5 mm², rigid | 1.5 mm², flexible |
| Cable section, minimum | 0.5 mm², rigid | 0.5 mm², flexible |
|---|
Mechanical data
| Installation instructions | pluggable |
|---|---|
| Mounting flange position | 3 |
| Tightening torque of the fixing screws, maximum | 1 Nm |
|---|
Approvals - Standards
| Certificates | CCC |
|---|
Status indication
| Colour of the LED | without |
|---|
| Note (LED switching conditions display) | Supply voltage UB: 24 VAC/DC |
|---|
