Fluke FLUKE 117 Fluke 117 Electricians Multimeter with Non-Contact voltage Fluke 117

MPN: FLUKE 117
UPC: 095969324205
PPN: FLU-FLUKE-117

$404.05

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

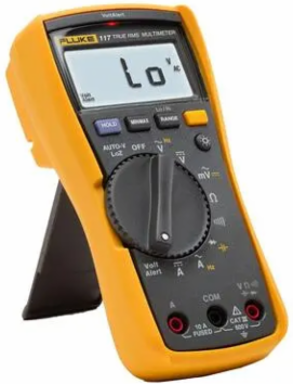

Fluke 117 Electricians Multimeter with Non-Contact voltage Fluke 117

Features

Non-contact voltage detection
AutoVolt automatic AC/DC voltage selection
Prevent false readings caused by ghost voltage
The 117 digital multimeter is a for electricians working in commercial and non-commercial premises that need non-contact voltage detection for faster and safer operations.

Documentation & Downloads

Specifications

Additional

Maximum Voltage	600 V rms
Measurement Capability	True RMS, Voltage, Resistance, Continuity, Frequency, Capacitance, Diode Test, Capacitance Lo-Z, Hz, AC/DC Amps
AC Volts Range/resolution	6.000 V / 0.001 V, 60.00 V / 0.01 V, 600.0 V / 0.1 V
DC Volts Range/resolution	6.000 V / 0.001 V, 60.00 V / 0.01 V, 600.0 V / 0.1 V
AC Amps Range/resolution	6.000 A / 0.001 A, 10.00 A / 0.01 A
DC Amps Range/resolution	6.000 A / 0.001 A, 10.00 A / 0.01 A
Ohms Range/resolution	600.0 / 0.1 to 40.00 M / 0.01 M
Continuity Range/resolution	600 / 1
Hz (V or A input) Range/resolution	99.99 Hz / 0.01 Hz to 50.00 kHz / 0.01 Hz
Capacitance Range/resolution	1000 nF / 1 nF to 9999 F / 1 F
Lo-Z Capacitance Range	1 nF to 500 F
Diode Test Range/resolution	2.00 V / 0.001 V
Input Impedance	Low input impedance (LoZ)
Display	Backlit digital display with large white LED backlight, 6,000 counts, updates 4 per second
Weight	550 g
Battery Life	400 hours typical, without backlight
Storage Temperature	-40 C to +60 C
Operating Altitude	2000 meters
Certifications	CE, CSA, RCM

Safety Rating	CAT III 600 V IEC 61010-1 Pollution Degree 2
Current Measurement	Measures up to 10 A (20 A overload for 30 seconds)
AC Volts Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz); 2.0% + 3 (500 Hz to 1 kHz)
DC Volts Accuracy	0.5% + 2
AC Amps Accuracy	1.5% + 3
DC Amps Accuracy	1.0% + 3
Ohms Accuracy	0.9% + 1; 5% + 2
Continuity Accuracy	Beeper on < 20 , off > 250 detects opens or shorts 500 s
Hz Accuracy	0.1% + 2
Capacitance Accuracy	1.9% + 2; 5% + 20%
Lo-Z Capacitance Accuracy	10% + 2 typical
Diode Test Accuracy	0.9% + 2
Voltage Selection	AutoVolt automatic AC/DC voltage selection
Size	167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
Battery Type	9 Volt Alkaline (IEC 6LR61)
Operating Temperature	-10 C to +50 C
Humidity	0% to 90% to 35 C; 75% to 40 C; 45% to 50 C
IP Rating	IP42
Fuse for A input	11 A, 1000 V FAST Fuse
