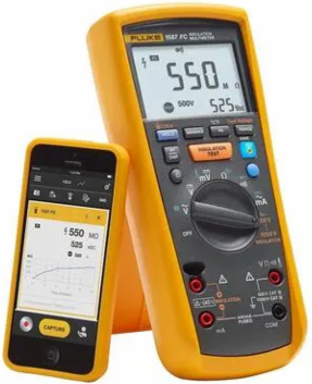

Fluke FLUKE 1587 FC Fluke 1587 FC Insulation Multimeter

MPN: FLUKE 1587 FC
UPC: 095969796620
PPN: FLU-FLUKE-1587 FC

$1510.27

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Fluke 1587 FC Insulation Multimeter

Documentation & Downloads

Specifications

Additional

Measurement Range	0.01 M to 2 G
Insulation Test Voltage Accuracy	+20%, -0%
Capacitive Load	Operable up to 1 F
AC Voltage Range	0.6 mV to 1000 V
DC Voltage Range	6 mV to 1000 V
AC/DC Milliamps Range	60 mA, 400 mA
Resistance Range	0.1 to 50 M
Continuity	Audible tone below 25
Frequency Accuracy	(0.1% + 1)
Capacitance Accuracy	(1.2% + counts)
Temperature Accuracy	(1% + 10 counts)
Size (H x W x L)	5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in)
Operating Temperature	-20 C to 55 C (-4 F to 131 F)
Battery Type	Four AA batteries (IEC LR6)
Relative Humidity	0% to 95% @ 10 C to 30 C; decreases at higher temps

Test Voltages	50 V, 100 V, 250 V, 500 V, 1000 V
Short-Circuit Test Current	1 mA nominal
Resistance Accuracy	(1.5% + 5 counts) to (10% + 3 counts) depending on range
AC Voltage Accuracy	(1% + 3) to (2% + 3)
DC Voltage Accuracy	(0.09% + 2)
AC/DC Milliamps Accuracy	AC: (1.5% + 2); DC: (0.2% + 2)
Diode Test Voltage Drop	0.6 V at 1.0 mA nominal
Frequency Range	5 Hz to 100 kHz
Capacitance Range	1000 nF to 9999 F
Temperature Range	-40 C to 537 C (-40 F to 998 F)
Safety Category	CAT III 1000 V, CAT IV 600 V
Weight	550 g (1.2 lb)
Storage Temperature	-40 C to 60 C (-40 F to 140 F)
Battery Life	1000 hours meter use; at least 1000 insulation tests
Compliance	CE Certified, CSA Certified, IEC 61326-1, IEC 61326-2-2 CISPR 11 Group 1 Class A, IEC 61010-1 Pollution Degree 2, IEC 61010-2-033, FCC T68-FBLE, IC 6627A-FBLE, Korea KCC Class A
