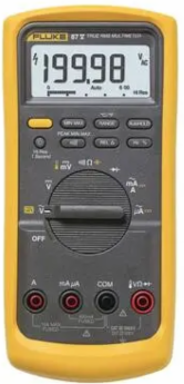

Fluke FLUKE-87-5 INDUSTRIAL TRUE RMS MULTIMETER
- MPN: FLUKE-87-5
- UPC: 095969245241
- PPN: FLU-FLUKE-87-5
CAD
$755.32
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
INDUSTRIAL TRUE RMS MULTIMETER
Documentation & Downloads
Specifications
Additional
- Maximum DC Voltage
- 1000 V
- Maximum DC Current
- 10 A (20 A for 30 seconds max)
- Maximum Resistance
- 50 MΩ
- Maximum Frequency
- 200 kHz
- Temperature Measurement Range
- -200 C to 1090 C (-328 F to 1994 F) Excluding probe
- Maximum Conductance
- 60.00 nS
- DC Voltage Accuracy
- ±(0.05% + 1)
- AC Voltage Accuracy
- ±(0.7% + 2) True RMS
- AC Voltage Resolution
- 0.1 mV
- DC Current Resolution
- 0.01 µA
- AC Current Resolution
- 0.1 bcA
- Resistance Resolution
- 0.1 a9
- Capacitance Resolution
- 0.01 nF
- Frequency Resolution
- 0.01 Hz
- Duty Cycle Resolution
- 0.1%
- Conductance Resolution
- 0.01 nS
- Diode Resolution
- 1 mV
- Storage Temperature
- -40 b0C to +60 b0C
- Operating Altitude
- 2000 m
- Agency Approvals
- CE, CSA, RCM
- Weight
- 355 g (624 g with holster)
Maximum AC Voltage1000 V
Maximum AC Current10 A (20 A for 30 seconds max)
Maximum Capacitance9,999 bcF
Maximum Duty Cycle99.9%
80 BK Temperature Probe Range-40 C to 260 C (-40 F to 500 F) , 2.2 C or 2% whichever is greater
Diode Range3 V
DC Voltage Resolution10 µV
AC Bandwidth20 kHz with low pass filter; 3 dB @ 1 kHz
DC Current Accuracy±(0.2% + 2)
AC Current Accuracy±(1.0% + 2) True RMS
Resistance Accuracyb1(0.2% + 1)
Capacitance Accuracyb1(1% + 2)
Frequency Accuracyb1(0.005% + 1)
Duty Cycle Accuracyb1(0.2% per kHz + 0.1%)
Conductance Accuracyb1(1.0% + 10)
Diode Accuracyb1(2% + 1)
Operating Temperature-20 b0C to +55 b0C
Humidity0%-90% (0-35 b0C), 0%-70% (35-55 b0C) no condensation
Overvoltage CategoryEN 61010-1 1000 V CAT III, 600 V CAT IV
Size201 x 98 x 52 mm (with holster)
