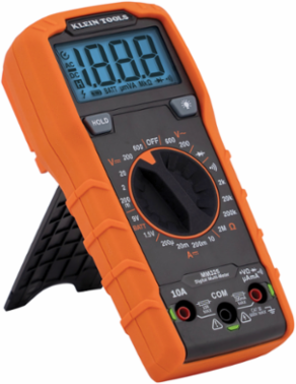

Klein Tools MM325 Digital Multimeter with 600V AC/DC Voltage, 10A DC Current, 2M Resistance
- MPN: MM325
- UPC: 092644693731
- PPN: KLT-MM325
- UNSPSC: 41113630
CAD
$49.22
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

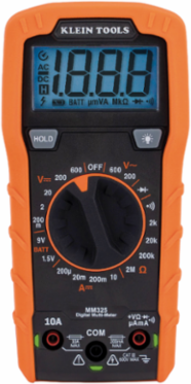

Klein Tools MM325 Multimeter is a manual-ranging multimeter that measures AC/DC voltage, DC current, and resistance. It can also test batteries, diodes, and continuity. Klein Tools' Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.
Features

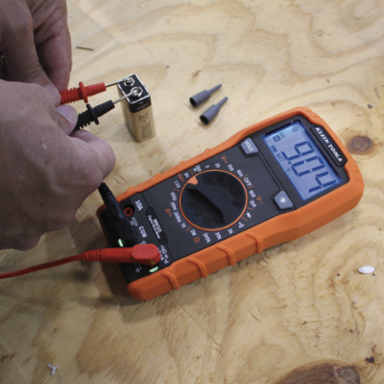

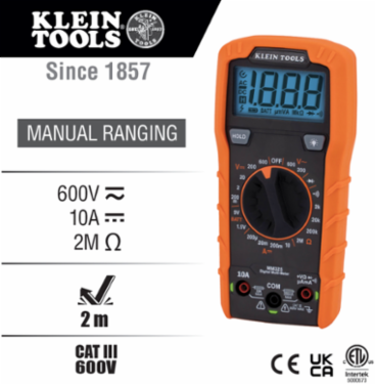

- Multimeter measures up to 600V AC/DC voltage, 10A DC current, 2 MOhms resistance, continuity, batteries, and diodes

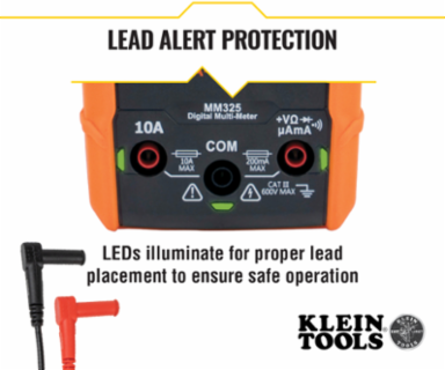

- Lead Alert protection with LED's for test lead placement
- Easy-to-view backlit display for low light environments
- Low battery indicator and easily accessible battery and fuse compartment
- Durable meter built to withstand a 6.6-Foot (2 m) drop
- Includes test leads, batteries and user manual
- CAT III 600V safety rating
- For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations

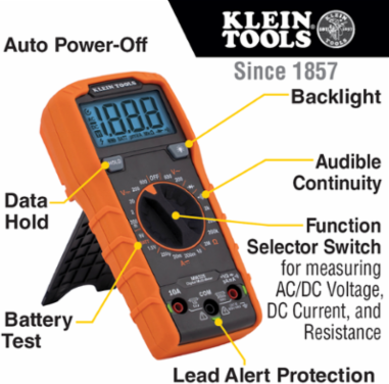

- Lead Alert; Backlight; Auto Power-Off; Data Hold
Documentation & Downloads
Specifications
Key Specifications
| Drop Protection | 6.6' (2 m) |
|---|---|
| Current | 10A DC |
| Voltage | 600V AC/DC |
| Display | 2000 Count LCD |
| Standard | CAT III 600V; CE and UKCA Certified |
| Included | Multimeter, Test Leads with CAT III/CAT IV Safety Caps, Instructions, 2 x AAA Batteries |
| Type | Digital Multimeter |
| Overall Width | 3.13 Inch (8 cm) |
| Overall Height | 4.6 cm (1.83 Inch) |
| Width | 5.0800 in |
| Weight | 0.8700 lbs |
| Batteries | 2 x AAA |
|---|---|
| Ohms | 2MΩ Resistance |
| Functions | Measures up to 600V AC/DC Voltage, 10A DC Current, 2MΩ Resistance, Tests Batteries, Diodes, and Continuity |
| Material | ABS and Electrical Components |
| Application | Testing and Measuring Voltage |
| Color | Orange/ Black |
| Accuracy | Voltage +/- 2% |
| Overall Length | 6.41 Inch (16.3 cm) |
| Height | 3.8200 in |
| Depth | 9.3300 in |
