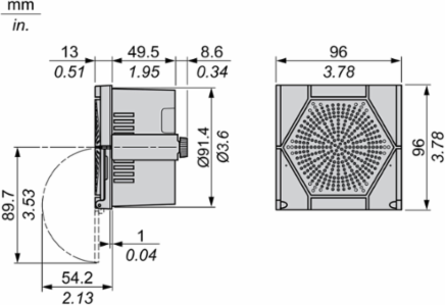

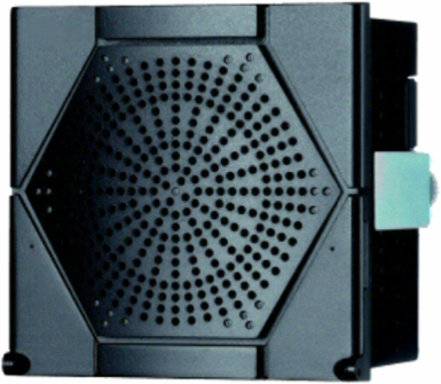

Schneider Electric XVS96BMBN Harmony XVS Electronic Alarm, 96dB, 16 Tones, 12-24V DC, IP54

MPN: XVS96BMBN
PPN: SCH-XVS96BMBN

$239.86

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This electronic alarm is an accessory designed as an audible and signaling unit for custom assembly It has a DIN72 connector and is dust resistant and water resistant thanks to its IP54 protection, making it ideal for operation in harsh environments The alarm is black High performance International standards & certifications (IP54)

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia, Japan

Depth	58.1 mm

Physical Attributes

Color	Black

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Current Consumption	250 mA 12 V, 292 mA 12 V, 292 mA 24 V, 354 mA 24 V
Carbon Footprint Of The Distribution Phase [A4]	0.0682528112, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.009935751, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	7 kg CO2 eq., 7.2928239521
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2312027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Device Short Name	XVS
Material	PC (polycarbonate): terminal coverPC (polycarbonate)/ABS (acrylonitrile butadiene-styrene): body
Noise Level	0-96 dB continuous or intermittent tone)1 m
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TC
Returnability	Yes
Software Version	EIME v5.8.0
Total Lifecycle Carbon Footprint	13 kg CO2 eq.
Database Version	2018-09
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To monitor an event by providing audible signaling/voice for safety alarm in public areas and factory applications during 10 years with a 30% use rate, in compliance with French standard.
Functional-unit Unit	unité (unit)
Energy Model - Manufacturing [A1-a3]	Energy model used: Indonesia
Energy Model - Use [B6]	Electricity mix; AC; < 1kV; EU-27
Height Nominal	96 mm
[Uimp] Rated Impulse Withstand Voltage	0.8 kV
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8531809051

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Certificate Agency	IEC 60947-5-1, IEC 60947-1
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.2 kg CO2 eq., 0.1826893268
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	5 kg CO2 eq., 5.262172023
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Marking	CE
Mounting Support	96 mm DIN rail
Overvoltage Category	class II conforming to IEC 61140
Product Or Component Type	electronic alarm
Range Of Product	Harmony XVS
Signalling Type	16 tones alarm
Sustainable Packaging	Yes
Pep Code	ENVPEP2312027EN
Pep Verification Date	2018-12-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; < 1kV; EU-27
Width Nominal	96 mm
[Us] Rated Supply Voltage	12...24 V DC
Package Weight(Lbs)	529.000 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-20-50 °C, -20-50 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	12.8158738641
Environmental Disclosure	ENVPEP2312027EN
Ip Degree Of Protection	panel mounted IP54 IEC 60529
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2312027EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-35-70 °C, -35-70 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2312027EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2018-12-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
