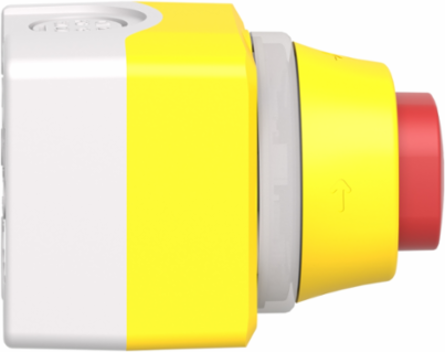

Schneider Electric XALK84W3BE Harmony Complete Control Station, 1NO 1NC, IP66, 24V AC/DC

  • MPN: XALK84W3BE
  • PPN: SCH-XALK84W3BE
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $133.62

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

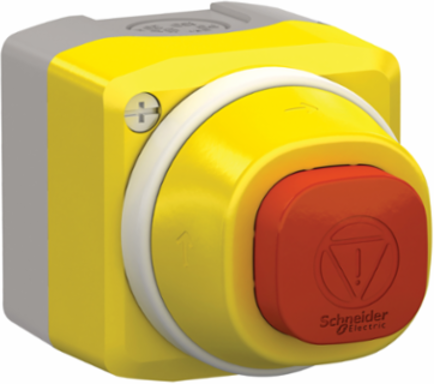

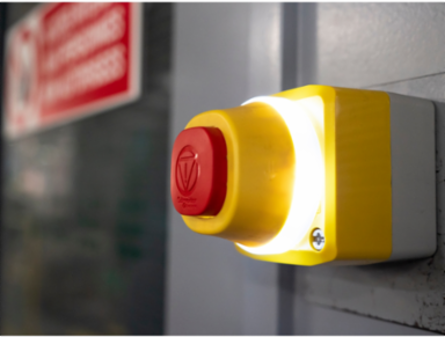

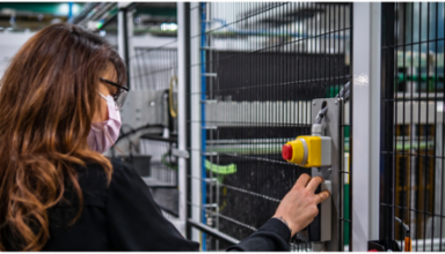

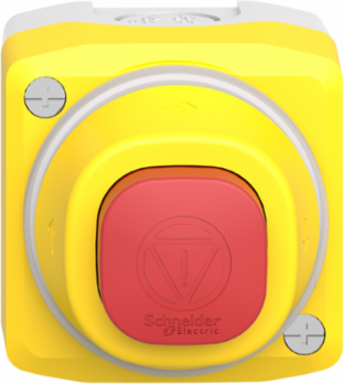

    This control station with mushroom head push-button for emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. Its schematic is clearly distinguishable thanks to clear colors. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Czechia

    Physical Attributes

    Color Of Cover
    yellow, yellow RAL 1021)
    Housing Color
    yellow
    Color Of Base Of Enclosurelight grey RAL 7035)

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Cable Entry

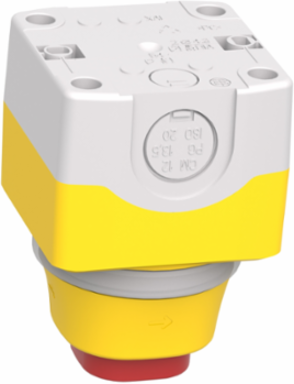

    1 knock-out for cable entry 0-14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm
    Electrical Durability
    1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Operating Travel
    1.5 mm NC changing electrical state), 4.3 mm total travel)
    Shape Of Screw Head
    cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    Vibration Resistance
    5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
    Certificate Agency
    UL Listed, CSA
    Connections - Terminals
    screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0 kg CO2 eq., 0.038520818
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    1 kg CO2 eq., 1.3277660532
    Local Data Status
    Publishable
    Return Indicator
    Y
    Future Msrp
    144.96
    Stock Policy
    2
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    7
    Without Single Use Plastic
    Yes
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Contact Operation
    slow-break
    Control Station Composition
    1 mushroom head push-button, red 1 NO + 1 NC
    Device Short Name
    XALK
    Housing Material
    plastic
    Mechanical Durability
    300000 cycles
    Operator Profile
    red square 32 mm
    Positive Opening
    with IEC 60947-5-1 appendix K
    Product Destination
    for XB5 Ø 22 mm control and signalling units
    Protective Treatment
    TH
    Reset
    turn to release
    Returnability
    Yes
    Sustainable Packaging
    Yes
    Total Lifecycle Carbon Footprint
    2 kg CO2 eq.
    Ac Control Voltage 50 Hz
    24-24 V
    Number Of Command Positions
    1
    Number Of Contacts As Normally Open Contact
    1
    Housing Color
    yellow
    Database Version
    2016-11
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    To provide Stop, Start or Combined functions on 10A electrical load for 20 years at 30% use rate with 0.5W power use.
    Functional-unit Unit
    unité (unit)
    Energy Model - Manufacturing [A1-a3]
    Energy model used: France
    Energy Model - Use [B6]
    Electricity mix; AC; < 1kV; EU-27
    [Ith] Conventional Free Air Thermal Current
    10 A IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947-1
    Short-circuit Protection
    10 A cartridge fuse gG IEC 60947-5-1
    Number Of Mushroom-shaped Push-buttons
    1
    Package Weight(Lbs)
    206.000 g
    Warranty (In Months)
    18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Control Station Applicationemergency switching off function, emergency stop function
    Electrical Reliabilityλ < 10exp(-6) 5 V, 1 mA IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA IEC 60947-5-4
    Resistance To Electrostatic Discharge4 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    Color Of Coveryellow, yellow RAL 1021)
    [Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    Carbon Footprint Of The Distribution Phase [A4]0.0263211452, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0012305636, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0.4 kg CO2 eq., 0.3742624
    Local Publishable Date2026-01-12
    Future Imap111.97
    Stocking FlagY
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2506022EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Compatibility CodeXALK
    Contacts Materialsilver alloy (Ag/Ni)
    Dc Control Voltage24-24 V
    Electrical Insulation Classclass II IEC 61140
    Materialpolycarbonate
    Operating Force44 N
    Operators Descriptionred unmarked 1 NO + 1 NC
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Product Or Component Typecomplete control station
    Range Of ProductHarmony XALK
    Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
    Software VersionEIME v5.8.1
    Tightening Torque0.8-1.2 N.m IEC 60947-1
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Ac Control Voltage 60 Hz24-24 V
    Number Of Contacts As Normally Closed Contact1
    Color Of Base Of Enclosurelight grey RAL 7035)
    Pep CodeENVPEP2506022EN
    Pep Verification Date2018-09-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime, In Y20
    Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
    [Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
    [Us] Rated Supply Voltage24 V AC/DC
    Emergency Power Off (Epo)no
    Nbr. Of Units In Pkg.1
    Take-backNo

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C, -40-70 °C
    Ip Degree Of Protection
    IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, IP66/IP67/IP69/IP69K
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI2506022EN
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Without Single Use Plastic
    Yes
    Pep Code
    ENVPEP2506022EN
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint1.76810098
    Environmental DisclosureENVPEP2506022EN
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2018-09-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Type
    complete control station
    Range Of ProductHarmony XALK

    ETIM

    ETIM 8
    EC000225
    ETIM 9EC000225

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
