Schneider Electric XB4FA21 Harmony XB4 30.5mm Metal Push Button, Spring Return, 1 NO, IP66
- MPN: XB4FA21
- PPN: SCH-XB4FA21
CAD
$33.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

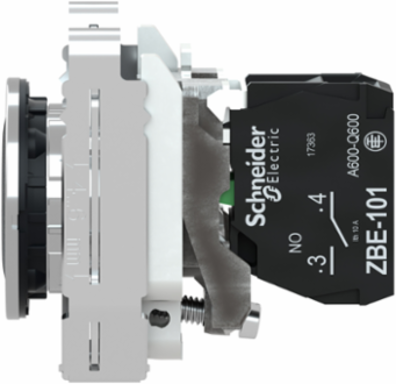

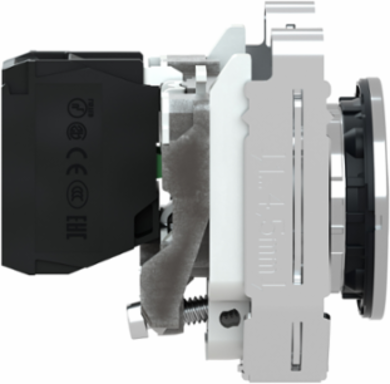

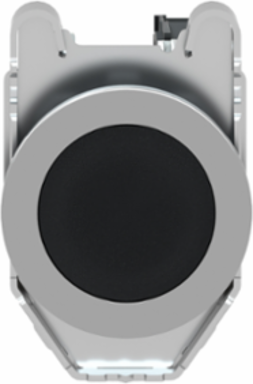

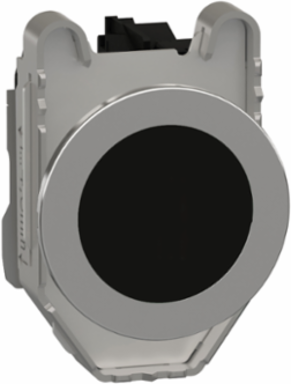

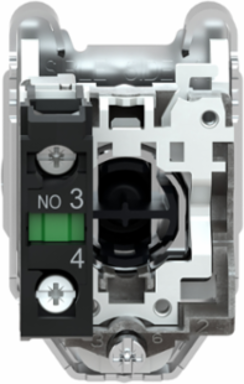

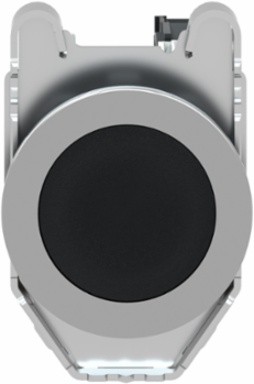

This flush mounted pushbutton is a part of the Harmony XB4 metallic range and is a complete product. The mounting diameter is 30.5 mm. It has no marking. Customized marking option through web customization tool in Schneider Electric website is available. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. The contact type is 1NO slow break and the connection terminal is screw clamp. The operator mechanism is spring return, and the push mechanism is flush push. The shape of the head is round and black. The bezel is chromium plated and the fixing collar is zamak. The weight of this pushbutton is 116 grams, height is 47 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, UL, CSA, JIS, NEMA, and marine approvals. Accessories to be ordered separately are available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, France, United States |
|---|
| Depth | 55 mm |
|---|
Physical Attributes
| Cap Operator Or Lens Color | black |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Customizable | no, 1 |
| Electrical Reliability | λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
| Shape Of Screw Head | cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm |
| Contacts Composition | 1 NO |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0142540451, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.0218620641 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0 kg CO2 eq., 0.0313123944 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Product Repair Index Dam Doc | XB4BS8442-ENVREPAIR-A-EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Average Percentage Of Recycled Metal Content | 18 % |
| Bezel Material | chromium plated metal |
| Contact Operation | slow-break |
| Contacts Type And Composition | 1 NO |
| Device Short Name | XB4F |
| Fixing Mode | by screws |
| Head Type | built-in-flush |
| Mounting Diameter | 30.5 mm |
| Operating Travel | 2.6 mm NO changing electrical state)4.3 mm total travel) |
| Positive Opening | without |
| Product Or Component Type | push-button |
| Protective Treatment | TH |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Sale Per Indivisible Quantity | 1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 1 kg CO2 eq. |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Operator Profile 1 Operator Profile | flush |
| Pep Code | ENVPEP2308035EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Recyclability Potential In % | 84 |
| Width Nominal | 36.6 mm |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Cap/Operator Or Lens Colour | black |
| Short-circuit Protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| Package Weight(Lbs) | 109 g |
| Take-back | No |
| Customs Code | 8538908180 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Operator Profile | black flush, unmarked, flush |
| Cap Operator Or Lens Color | black |
| Certificate Agency | UL Listed, CSA |
| Terminals Description Iso N°1 | (13-14)NO, (13-14)NO |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1378727165, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.8 kg CO2 eq., 0.7725940688 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2308035EN |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Percentage Of Recycled Plastic Content | 19 % |
| Compatibility Code | XB4 |
| Contacts Material | silver alloy (Ag/Ni) |
| Contacts Usage | standard contacts |
| Fixing Collar Material | zamak |
| Gcr Bridge | XB4FACUST01 |
| Mechanical Durability | 10000000 cycles |
| Operating Force | 3.8 N NO changing electrical state |
| Overvoltage Category | class I conforming to IEC 60536 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Repair Index | A |
| Range Of Product | Harmony XB4 |
| Returnability | Yes |
| Shape Of Signaling Unit Head | round |
| Software Version | v5.9.4 |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Type Of Operator | spring return |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Operator Profile 1 Marking | unmarked |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; UE-27 |
| Height Nominal | 47 mm |
| [Ith] Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Nbr. Of Units In Pkg. | 1 |
| Product Repair Index - Dam Document Id | XB4BS8442-ENVREPAIR-A-EN |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Ip Degree Of Protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Product Compatibility | ZBYF..., ZBZF32, ZBZF33 |
| Recycled Metal Content At Cr Level | 18 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.9778952888 |
| Environmental Disclosure | ENVPEP2308035EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Nema Degree Of Protection | NEMA 13, NEMA 4X, UL type 4X/13 |
| Take Back | No |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2308035EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2308035EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | push-button |
|---|
| Range Of Product | Harmony XB4 |
|---|
ETIM
| ETIM 8 | EC001028 |
|---|
| ETIM 9 | EC001028 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | complete product |
|---|
