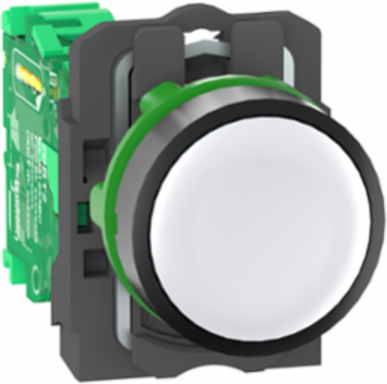

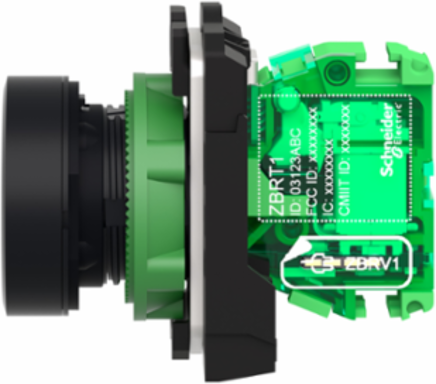

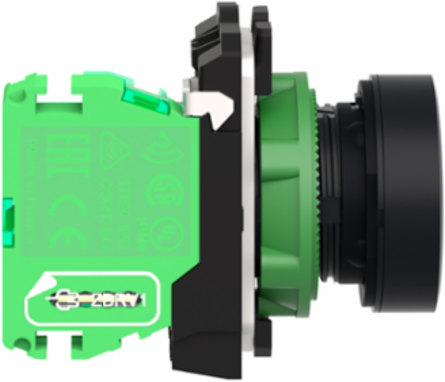

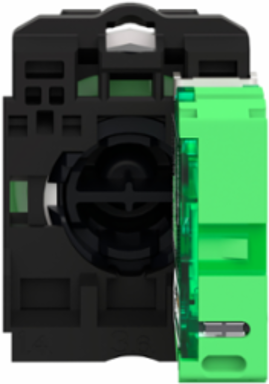

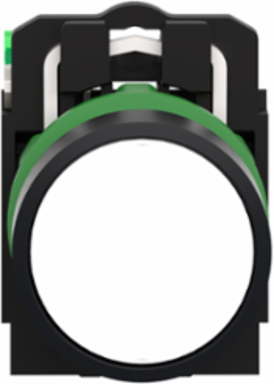

Schneider Electric ZB5RTA1 Wireless Push Button Transmitter, 22mm, Spring Return, IP66/IP67
- MPN: ZB5RTA1
- PPN: SCH-ZB5RTA1
CAD
$126.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This wireless and batteryless push button is part of the range Harmony XB5R plastic and XB4R metal. It features a transmitter fitted with a fixing collar and a spring return flush push button head with white clipped-in cap. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It weighs 45g.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
Communications & Management Attributes
- Communication Port Protocol
- Zigbee green power 2.4 GHz IEEE 802.15.4
Physical Attributes
- Cad Overall Depth
- 43 mm
- Cad Overall Width
- 30 mm
Cad Overall Height41.5 mm
Embedding Depth42 mm
Complementary Attributes
- Maximum Sensing Distance
- 100 m in free field25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Shock Resistance
- 25 gn 6 ms) 6000 shocks IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- X C Marking
- unmarked
- Certificate Agency
- CSA, C-tick, GOST, BT 2006/95/EC, UL
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0259697707
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.5 kg CO2 eq., 0.4751274667
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Product Repair Index Dam Doc
- XB4BS8442-ENVREPAIR-A-EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Antenna Gain
- 0 dBi
- Bezel Material
- dark grey plastic
- Electrical Composition Code
- PW1
- Emission Power
- 3 mW
- Fixing Mode
- fixing nut beneath head 2-2.4 N.m
- Level Or Class
- 5M00G7W
- Marking
- unmarked
- Mechanical Durability
- 1000000 cycles
- Modulation Technique
- O-QPSK
- Number Of Channels
- 16
- Operating Travel
- 4.3 mm total travel)
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Repair Index
- A
- Response Time
- < 2 ms< 2 ms
- Shape Of Signaling Unit Head
- round
- Station Name
- XALD 1...5 cut-outsXALK 2...5 cut-outs
- Total Lifecycle Carbon Footprint
- 32 kg CO2 eq.
- Type Of Operator
- spring return push-button with transmitter
- Pep Code
- ENVPEP2506038EN
- Pep Verification Date
- 2020-11-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: France
- Energy Model - Use [B6]
- Electricity Mix; AC; <lt/> 1kV; EU-27
- Recyclability Potential In %
- 13
- Nbr. Of Units In Pkg.
- 1
- Product Repair Index - Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Radio AgreementANATEL, ARIB T66, FCC, ICASA, RSS
Vibration Resistance+/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-65 gn (f= 11-500 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6
Operator Profile 1 Cap Operator Or Lens Colorwhite
Carbon Footprint Of The Distribution Phase [A4]0.008204352, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0013874432, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]31 kg CO2 eq., 31.0418797733
Local Publishable Date2026-01-12
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2506038EN
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Antenna Typeomnidirectional
Device Short NameXB5R
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
Fixing Collar Materialplastic
Group Of Productflush push wireless
Main Groupwireless push-button
Max Power Consumption In W1 mW
Mechanical Robustnessfree fall resistance 1000 mm IEC 60068-2-32
Mounting Diameter22 mm
Operating Force10 N C/O changing electrical state
Operator Profilewhite flush
Product Or Component Typewireless and batteryless transmitter
Range Of ProductHarmony XB5
ReturnabilityYes
Software VersionEIME v5.8.1
Sustainable PackagingYes
Transmission Frequency2405 MHz
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe ZBRT1 is a wireless switch block which can be mounted with an actuation head. When the head is actuated through the action of an operator the product will generate electricity in order to send a radio signal to a radio reciever for 10 years.
Energy Consumption On Product Lifetime In Kwh52.5746
Energy Model - Installation [A5]Electricity Mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; AC; <lt/> 1kV; EU-27
Cap/Operator Or Lens Colourwhite
Package Weight(Lbs)52.0 g
Take-backNo
Customs Code8526925000
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Directives
- 1999/5/EC - R&TTE directive, 2004/108/EC - electromagnetic compatibility
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 31.5525688059
- Environmental Disclosure
- ENVPEP2506038EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2506038EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Ip Degree Of ProtectionIP66 IEC 60529 front face), IP67 IEC 60529 front face), IP69 IEC 60529 front face), IP69K IEC 60529 front face)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2506038EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % -40-70 °C without condensation
Pep Verification Date2020-11-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- wireless and batteryless transmitter
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
