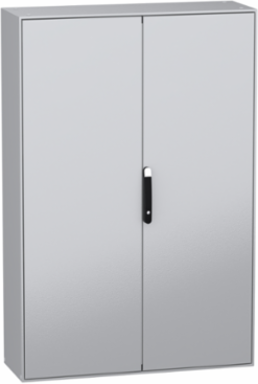

Schneider Electric NSYSM1812402D Spacial SM Compact Enclosure 1800x1200x400 mm, IP55, IK10, 112 kg
Schneider Electric NSYSM1812402D Spacial SM Compact Enclosure 1800x1200x400 mm, IP55, IK10, 112 kg
- MPN: NSYSM1812402D
- PPN: SCH-NSYSM1812402D
- UNSPSC: 39121327
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3165.71/ EA
Description

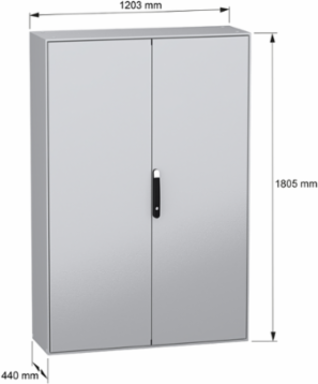

Spacial SM monobloc compact steel enclosure with 2 plain front doors. 1799 x 1200 x 400 mm. Back panel welded, without mounting plate. 4 point door locking system with handle DB 5mm. Sheet steel. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets and 2 parts cable gland plate included.
Features
- Electrical enclosure design that contains recycled steel made with renewable energy to face environmental challenges.
- IEC and UL compliant industrial steel cabinet, making it sturdy, robust, and durable for maximum component protection.
- Ergonomic design for convenience & time-saving operations.
- Large choice of sizes and accessories to simplify mounting, to adapt any control panel and electrical panel requirement.
- Reusable recycled cardboard packaging corners.
- Quick-fixing system that pre-holds the plate before final screwing fixation, allowing the operation by only one person.
- Ideal compact size for floor mount.
- Front-accessibility for easy operation.
Specifications
Physical Attributes
- Color
- enclosure Gray RAL 7035), handle Black RAL 9005)
- Enclosure Nominal Width
- 1200 mm
Enclosure Nominal Height1800 mm
Conformance Attributes
- Product Certifications
- DNV, BV, UL
StandardsIEC 62208
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Body Type
- front part forming a rigid frame with welded corners, single piece body with welded rear panel
- Door Opening Side
- left 120 °), right 120 °)
- Removable Parts
- door by screws hinge, mounting plate bracket by screws
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 275 kg CO2 eq., 275.1376113403341
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 251 kg CO2 eq., 250.94447669785563
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Cable Entry
- 1 entry
- Door Type
- Solid
- Lock Type
- 4 points lock, handle with 5 mm double bar insert
- Number Of Doors
- front 2
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Surface Finish
- epoxy-polyester powder
- Total Lifecycle Carbon Footprint
- 765 kg CO2 eq.
- Medium Desc
- Spacial SM compact enclosure without mounting plate - 1800x1200x400 mm
- Product Kit Identifier
- N
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Low voltage; 2020; Spain, ES
- Energy Model Use B6 2
- Electricity origin
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Device Composition1 body, 2 door, 2 cable gland plate, 1 locking system with handle door, 1 blocking system left door, 4 mounting plate bracket
Materialbody sheet steel, door sheet steel, hinge zamak
Carbon Footprint Of The Distribution Phase A4221.96311565417852, 222 kg CO2 eq.
Carbon Footprint Of The Installation Phase A517.133167861508902, 17 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-07-10
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Device Applicationmulti-purpose
Energy Efficiency OptimizedFalse
Mounting Plate Descriptionwithout mounting plate
Package Weight Lbs112.000 kg
Product Or Component Typecompact enclosure
ReturnabilityNo
Sustainable PackagingNo
Type Of Gland Platestandard
Stocking FlagY
Pep CodeENVPEP2501030_V1
Pep Verification Date2025-02-10
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity origin
Energy Model End Of Life C1 C4 2Electricity origin
Product NamePanelSeT SM
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 765.1783715538772
- IP Degree Of Protection
- IP55 IEC 60529
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2501030_V1
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2501030_V1
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-02-10
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- compact enclosure
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
