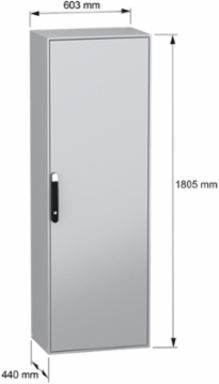

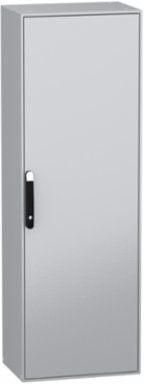

Schneider Electric NSYSM18640 Spacial SM Compact Enclosure 1800x600x400 mm, IP55, IK10
Schneider Electric NSYSM18640 Spacial SM Compact Enclosure 1800x600x400 mm, IP55, IK10
- MPN: NSYSM18640
- PPN: SCH-NSYSM18640
- UNSPSC: 39121327
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1770.05/ EA
Description
Spacial SM monobloc compact steel enclosure with plain front door. 1800 x 600 x 400 mm. Back panel welded, without mounting plate. 4 point door locking system with handle DB 5mm. Sheet steel. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets and 2 parts cable gland plate included.
Specifications
Physical Attributes
- Color
- enclosure Gray RAL 7035), handle Black RAL 9005)
- Enclosure Nominal Width
- 600 mm
Enclosure Nominal Height1800 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 body, 1 cable gland plate, 1 locking system with handle door, 4 mounting plate bracket, 1 door
- Removable Parts
- door by screws hinge, mounting plate bracket by screws
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 187 kg CO2 eq., 186.8923845
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 345 kg CO2 eq., 345.436918
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- WD Status
- 1 - GSC certified
- Function Option
- Standard
- Door Opening Side
- reversible 120 °)
- Installation Accessory Type
- floor-standing
- Package Weight Lbs
- 73.000 kg
- Product Or Component Type
- compact enclosure
- Returnability
- No
- Sustainable Packaging
- No
- Type Of Gland Plate
- standard
- Pep Code
- ENVPEP1109023EN
- PCR Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Unit
- unit
- Product Manager
- JULES BARBALONGA
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Materialbody sheet steel, door sheet steel, hinge zamak
Carbon Footprint Of The Distribution Phase A415.30361367, 15 kg CO2 eq.
Carbon Footprint Of The Installation Phase A517.62785245, 18 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-07-10
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function Option IdSTANDARD
CoverageCore product
Energy Efficiency OptimizedFalse
Number Of Doorsfront 1
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
Surface Finishepoxy-polyester powder
Total Lifecycle Carbon Footprint565 kg CO2 eq.
Relationship TypeCompatible relationship
Pep Verification Date2023-03-30
PSR VersionPSR-0005-ed2-2016 03 29
Functional Unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Product Kit IdentifierN
Environment Attributes Main
- EU ROHS Directive
- Compliant By Exemption?, Pro-active compliance (Product out of EU RoHS legal scope)
- Take Back
- No
- China ROHS Regulation
- X
- Carbon Footprint
- 565.2607686
- IP Degree Of Protection
- IP55 IEC 60529
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
- PCR Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
PSR VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- compact enclosure
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
