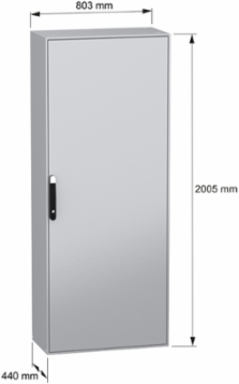

Schneider Electric NSYSM20840P Spacial SM Compact Steel Enclosure 2000 x 800 x 400 mm, IP55, IK10
Schneider Electric NSYSM20840P Spacial SM Compact Steel Enclosure 2000 x 800 x 400 mm, IP55, IK10
- MPN: NSYSM20840P
- PPN: SCH-NSYSM20840P
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2862.26/ EA
Description

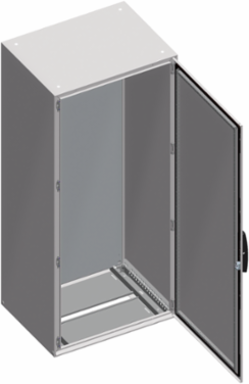

Spacial SM monobloc compact steel enclosure with plain front door. 2000 x 800 x 400 mm. Back panel welded, mounting plate included. 4 point door locking system with handle DB 5mm. Sheet steel, galvanized steel for mounting plate. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets included.
Specifications
Environment
- Product Certifications
- UL || DNV || BV
- Standards
- IEC 62208
Ik Degree Of ProtectionIK10 IEC 62262
Ip Degree Of ProtectionIP55 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110923EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Accessibility For Operation
- front
- Lock Type
- 4 points lock, handle with 5 mm double bar insert
- Door Opening Side
- reversible 120 °)
- Body Type
- single piece body with welded rear panel || front part forming a rigid frame with welded corners
- Surface Finish
- epoxy-polyester powder
- Colour
- enclosure grey RAL 7035) || handle black RAL 9005)
- Mounting Plate Description
- plain
Type Of Gland Platestandard
Net Weight117 kg
Number Of Doorsfront 1
Materialmounting plate galvanised steel || body sheet steel || door sheet steel || hinge zamak
Cable Entry1 entry
Door Typeplain
Specifications
- Removable Parts
- door by screws hinge || mounting plate by screws mounting plate bracket || mounting plate bracket by screws
- Product Or Component Type
- compact enclosure
- Device Composition
- 1 body || 1 cable gland plate || 1 locking system with handle door || 4 mounting plate bracket || 1 mounting plate || 1 door
- Range
- Spacial
- Device Application
- multi-purpose
Installation Accessory Typefloor-standing
Product NameSpacial SM
Enclosure Nominal Height2000 mm
Enclosure Nominal Depth400 mm
Enclosure Nominal Width800 mm
