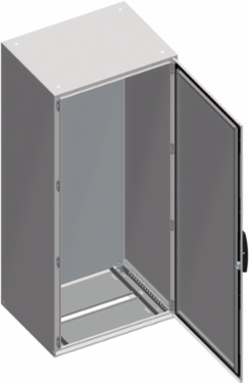

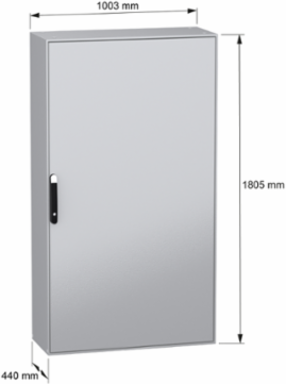

Schneider Electric NSYSM181040P Spacial SM Compact Enclosure 1800x1000x400 mm, 140 kg, IP55, IK10
- MPN: NSYSM181040P
- PPN: SCH-NSYSM181040P
CAD
$3016.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Spacial SM Compact Enclosure from Schneider Electric is expertly designed to enhance the safety and organization of your automation and control systems. With its robust construction, this enclosure boasts an impressive IP55 rating, ensuring protection against dust and water ingress, while the IK10 rating signifies its resilience against impact, making it suitable for challenging environments. Measuring 1800x1000x400 mm, it provides ample space for various applications in data, communication, and IT sectors. Whether you’re looking to safeguard sensitive equipment or streamline your setup, this enclosure delivers exceptional durability and performance.
Documentation & Downloads
Specifications
Additional
- Product Or Component Type
- Compact enclosure
- Enclosure Nominal Width
- 1000 mm
- Net Weight
- 140 kg
- Number of Doors
- 1 front
- Door Opening Side
- Reversible 120°
- Mounting Plate Description
- Plain
- Cable Entry
- 1 entry
- Surface Finish
- Epoxy-polyester powder
- IK Rating
- IK10 IEC 62262
- Standards
- IEC 62208
- Warranty
- 18 months
- Environmental Disclosure
- ENVPEP110923EN
- Eu RoHS Directive
- Pro-active compliance (out of EU RoHS legal scope)
- China RoHS Regulation
- Out of China RoHS scope, substance declaration
- Device Composition
- 1 body, 1 cable gland plate, 1 locking system with handle door, 4 mounting plate brackets, 1 mounting plate, 1 door
- Device Application
- Multi-purpose
- Range
- Spacial
- Colour
- Enclosure gray RAL 7035, Handle black RAL 9005
Enclosure Nominal Height1800 mm
Enclosure Nominal Depth400 mm
Body TypeSingle piece body with welded rear panel, front part forming rigid frame with welded corners
Door TypePlain
Lock Type4 points lock, handle with 5 mm double bar insert
Type of Gland PlateStandard
MaterialMounting plate galvanised steel, Body sheet steel, Door sheet steel, Hinge zamak
IP RatingIP55 IEC 60529
Installation Accessory TypeFloor-standing
Product CertificationsDNV, BV, UL
Sustainable Offer StatusGreen Premium product
RoHS Exemption InformationYes
Reach RegulationContains Substances of Very High Concern above threshold
Mercury FreeYes
Removable PartsDoor by screws hinge, mounting plate by screws mounting plate bracket, mounting plate bracket by screws
Accessibility For OperationFront
Circularity ProfileN/A
