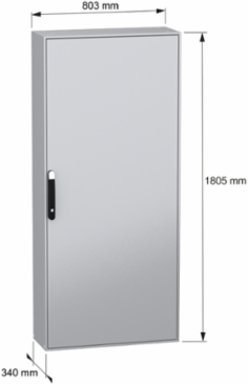

Schneider Electric NSYSM18830 PanelSeT SM Compact Steel Enclosure 1800x800x300 mm IP55 IK10
Schneider Electric NSYSM18830 PanelSeT SM Compact Steel Enclosure 1800x800x300 mm IP55 IK10
- MPN: NSYSM18830
- PPN: SCH-NSYSM18830
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2081.62/ EA
Description

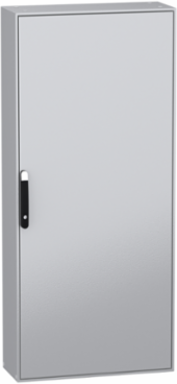

Spacial SM monobloc compact steel enclosure with plain front door. 1800 x 800 x 300 mm. Back panel welded, without mounting plate. 4 point door locking system with handle DB 5mm. Sheet steel. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets and 2 parts cable gland plate included.
Specifications
Physical Attributes
- Color
- enclosure Gray RAL 7035), handle Black RAL 9005)
- Enclosure Nominal Width
- 800 mm
Enclosure Nominal Height1800 mm
Conformance Attributes
- Product Certifications
- BV, DNV, UL
StandardsIEC 62208
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Body Type
- single piece body with welded rear panel, front part forming a rigid frame with welded corners
- Material
- body sheet steel, door sheet steel, hinge zamak
- Carbon Footprint Of The Distribution Phase A4
- 154.58145554487433, 155 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 11.932027617836559, 12 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-07-15
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Coverage
- Core product
- Door Opening Side
- reversible 120 °)
- Energy Efficiency Optimized
- False
- Mounting Plate Description
- without mounting plate
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- compact enclosure
- Returnability
- No
- Surface Finish
- epoxy-polyester powder
- Total Lifecycle Carbon Footprint
- 533 kg CO2 eq.
- Warranty In Months
- 18
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional Unit Unit
- Unit
- Reference Lifetime In Y2
- 20
- Energy Model Installation A5 2
- Electricity origin
- Energy Model End Of Life C1 C4 2
- Electricity origin
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Device Composition1 body, 1 cable gland plate, 1 locking system with handle door, 4 mounting plate bracket, 1 door
Removable Partsdoor by screws hinge, mounting plate bracket by screws
Carbon Footprint Of The End Of Life Phase C1 To C4192 kg CO2 eq., 191.6136936120184
Carbon Footprint Of The Manufacturing Phase A1 To A3175 kg CO2 eq., 174.76490341457804
Local Data StatusPublishable
Global Commercial StatusCommercialised
Stocking FlagY
Legacy Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1912
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Cable Entry1 entry
Device Applicationmulti-purpose
Door TypeSolid
Lock Type4 points lock, handle with 5 mm double bar insert
Number Of Doorsfront 1
Product NamePanelSeT SM
RangePanelSeT
Software Versionv6.2.2
Sustainable PackagingNo
Type Of Gland Platestandard
Pep CodeENVPEP2501030_V1
Pep Verification Date2025-02-10
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit Quantity1
Product Weight In G278000
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; Spain, ES
Energy Model Use B6 2Electricity origin
Offer Owner Code190789
Environment Attributes Main
- Take Back
- Nej
- China Rohs Regulation
- X
- Carbon Footprint
- 532.8920801893073
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-02-10
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2501030_V1
Ip Degree Of ProtectionIP55 IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2501030_V1
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- compact enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
