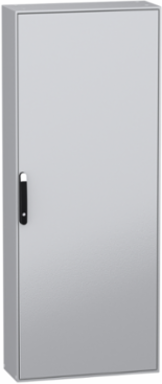

Schneider Electric NSYSM20830 PanelSeT SM Compact Enclosure 2000x800x300 mm IP55 IK10
Schneider Electric NSYSM20830 PanelSeT SM Compact Enclosure 2000x800x300 mm IP55 IK10
- MPN: NSYSM20830
- PPN: SCH-NSYSM20830
- UNSPSC: 39121327
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2196.66/ EA
Description

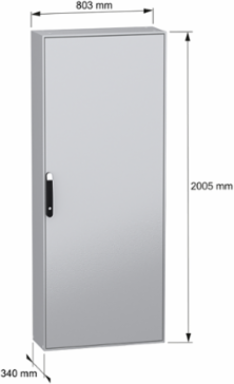

Spacial SM monobloc compact steel enclosure with plain front door. 2000 x 800 x 300 mm. Back panel welded, without mounting plate. 4 point door locking system with handle DB 5mm. Sheet steel. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets and 2 parts cable gland plate included.
Features
- Electrical enclosure design that contains recycled steel made with renewable energy to face environmental challenges.
- IEC and UL compliant industrial steel cabinet, making it sturdy, robust, and durable for maximum component protection.
- Ergonomic design for convenience & time-saving operations.
- Large choice of sizes and accessories to simplify mounting, to adapt any control panel and electrical panel requirement.
- Reusable recycled cardboard packaging corners.
- Quick-fixing system that pre-holds the plate before final screwing fixation, allowing the operation by only one person.
- Ideal compact size for floor mount.
Specifications
Physical Attributes
- Color
- enclosure Gray RAL 7035), handle Black RAL 9005)
- Enclosure Nominal Width
- 800 mm
Enclosure Nominal Height2000 mm
Conformance Attributes
- Product Certifications
- DNV, BV, UL
StandardsIEC 62208
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Body Type
- single piece body with welded rear panel, front part forming a rigid frame with welded corners
- Material
- body sheet steel, door sheet steel, hinge zamak
- Carbon Footprint Of The Distribution Phase A4
- 166.47233674063392, 166 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 12.84987589613168, 13 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-07-15
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Coverage
- Core product
- Door Opening Side
- reversible 120 °)
- Energy Efficiency Optimized
- False
- Mounting Plate Description
- without mounting plate
- Package Weight Lbs
- 84.000 kg
- Product Or Component Type
- compact enclosure
- Returnability
- No
- Sustainable Packaging
- No
- Type Of Gland Plate
- standard
- Stocking Flag
- Y
- Pep Code
- ENVPEP2501030_V1
- Pep Verification Date
- 2025-02-10
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional Unit Unit
- Unit
- Energy Model Installation A5 2
- Electricity origin
- Energy Model End Of Life C1 C4 2
- Electricity origin
- Product Name
- PanelSeT SM
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Device Composition1 body, 1 cable gland plate, 1 locking system with handle door, 4 mounting plate bracket, 1 door
Removable Partsdoor by screws hinge, mounting plate bracket by screws
Carbon Footprint Of The End Of Life Phase C1 To C4206 kg CO2 eq., 206.3532085052506
Carbon Footprint Of The Manufacturing Phase A1 To A3188 kg CO2 eq., 188.20835752339175
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Cable Entry1 entry
Device Applicationmulti-purpose
Door TypeSolid
Lock Type4 points lock, handle with 5 mm double bar insert
Number Of Doorsfront 1
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
Surface Finishepoxy-polyester powder
Total Lifecycle Carbon Footprint574 kg CO2 eq.
Medium DescPanelSeT SM compact enclosure without mounting plate - 2000x800x300 mm
Product Kit IdentifierN
Database Version2024-01
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; Spain, ES
Energy Model Use B6 2Electricity origin
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 573.8837786654079
- IP Degree Of Protection
- IP55 IEC 60529
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2501030_V1
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2501030_V1
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-02-10
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- compact enclosure
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
