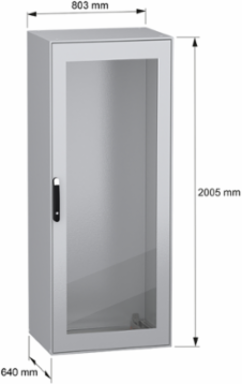

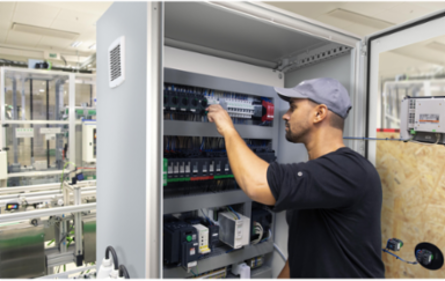

Schneider Electric NSYSM20860T PanelSeT SM Compact Enclosure, 2000mm x 800mm x 600mm, IP55, IK08, 110kg
- MPN: NSYSM20860T
- PPN: SCH-NSYSM20860T
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

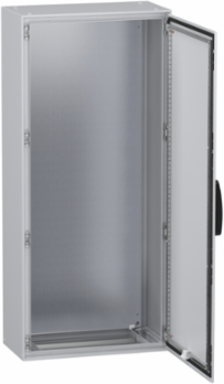

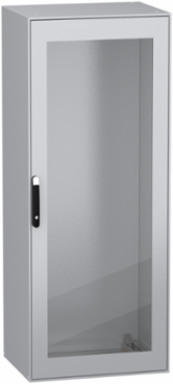

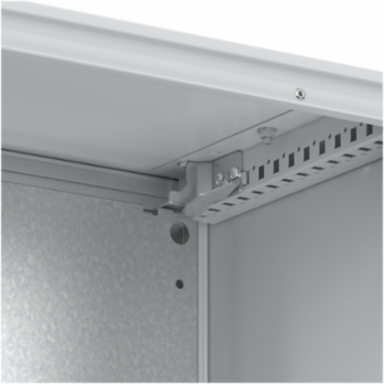

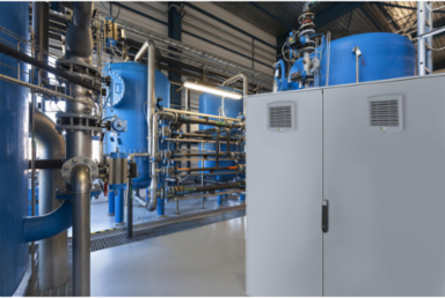

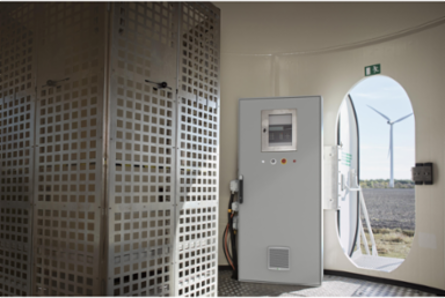

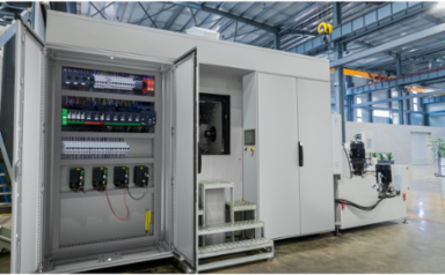

Spacial SM monobloc compact steel enclosure with glazed door. 2000 x 800 x 600 mm. Back panel welded. 4 point door locking system with handle DB 5mm. Steel made. Protection IP 55, IK08, Grey RAL 7035. 4 mounting plate support brackets included.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
Physical Attributes
- Color
- enclosure Gray RAL 7035), handle Black RAL 9005)
- Enclosure Nominal Width
- 800 mm
Enclosure Nominal Height2000 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Body Type
- single piece body with welded rear panel, front part forming a rigid frame with welded corners
- Material
- door sheet steel, door Securit glassbody sheet steelhinge zamak
- Certificate Agency
- UL, BV, DNV
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 270 kg CO2 eq., 270.22443970925667
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 246 kg CO2 eq., 246.46332532825107
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Coverage
- Core product
- Door Opening Side
- reversible 120 °)
- Energy Efficiency Optimized
- False
- Mounting Plate Description
- without mounting plate
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- compact enclosure
- Returnability
- No
- Surface Finish
- epoxy-polyester powder
- Total Lifecycle Carbon Footprint
- 752 kg CO2 eq.
- Pep Code
- ENVPEP2501030EN
- Pep Verification Date
- 2025-02-10
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity origin
- Energy Model - End Of Life [C1-c4]
- Electricity origin
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- Yes
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial

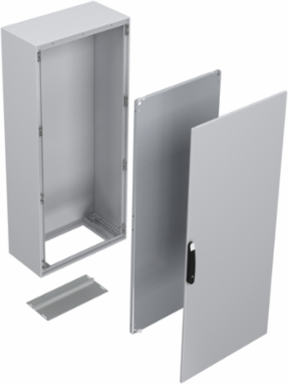

Device Composition1 body, 1 cable gland plate1 locking system with handle door4 mounting plate bracket, 1 door

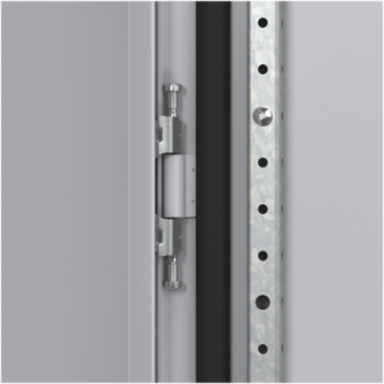

Removable Partsdoor by screws hinge, mounting plate bracket by screws
Carbon Footprint Of The Distribution Phase [A4]217.99948858892535, 218 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]16.82721843541053, 17 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2025-07-15
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1912
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Cable Entry1 entry
Device Applicationmulti-purpose
Door TypeGlass

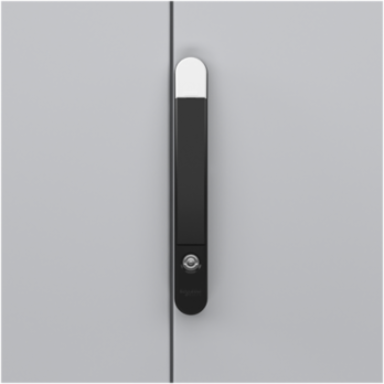

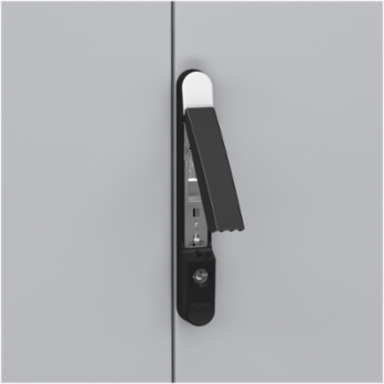

Lock Type4 points lock, handle with 5 mm double bar insert
Number Of Doorsfront 1
Product NamePanelSeT SM
RangePanelSeT
Software Versionv6.2.2
Sustainable PackagingNo
Type Of Gland Platestandard
Database Version2024-01
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Spain, ES
Energy Model - Use [B6]Electricity origin
Recyclability Potential In %89
Package Weight(Lbs)110.000 kg
Take-backNo
Customs Code9403200090
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP2501030EN
- Ip Degree Of Protection
- IP55 IEC 60529
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2501030EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint751.5144720618437
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-02-10
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- compact enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
