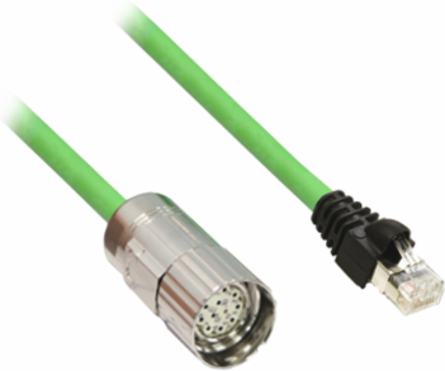

Schneider Electric VW3E2094R100 Encoder cable SH3/MH3 servo motor and Lexium 52/Lexium 62 servo drive, 10 m

Encoder cable SH3/MH3 servo motor and Lexium 52/Lexium 62 servo drive, 10 m
  • MPN: VW3E2094R100
  • PPN: SCH-VW3E2094R100

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$222.74/ EA

Description

This product is part of the Lexium 52 & Motors range, an offer of connection accessories for Lexium 62 and Lexium 52. This encoder cable is an accessory for SH3/MH3 servo motor and Lexium 52/Lexium 62 servo drive. The length of this cable is 10m. It is furnished with RJ45 and M23 industrial connector for electrical connection. It weighs 0.745kg. This range is compatible with Lexium 62 and Lexium 52. The product compatible with LXM 62 servo drive, LXM 52 servo drive, SH3 servo motor and MH3 servo motor. Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.

Specifications

Complementary

Connector Type
RJ45 || M23
Range Compatibility
Lexium 52 || Lexium 62
Net Weight
0.745 kg
Cable Length10 m
Product CompatibilityLXM 62 servo drive || LXM 52 servo drive || SH3 servo motor || MH3 servo motor

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1409023EN
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Circularity ProfileENVEOLI1409023EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold

Specifications

Range Of Product
PacDrive 3
Product Or Component Typecable
