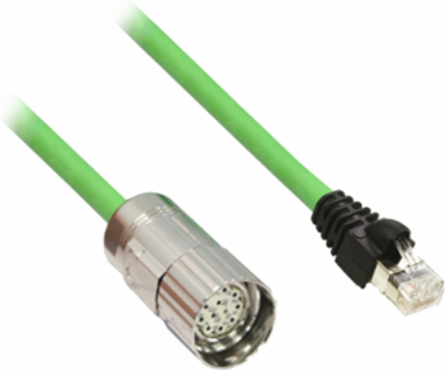

Schneider Electric VW3E2094R500 Encoder Cable for SH3/MH3 & Lexium 52/62 Servo, 50 m, RJ45/M23
- MPN: VW3E2094R500
- PPN: SCH-VW3E2094R500
CAD
$622.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This encoder cable from Schneider Electric is specifically designed for use with SH3/MH3 and Lexium 52/62 servo systems, ensuring seamless integration and reliable performance in motion control applications. Measuring an impressive 50 meters in length, it features both RJ45 and M23 connectors, making it versatile for a variety of installation environments. Ideal for automation enthusiasts and industrial applications alike, this cable is an essential accessory for those looking to optimize their servo motor connections, providing enhanced signal quality and operational efficiency. With its robust construction, it supports the durability needed in demanding environments, facilitating precise control in your motion systems.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Germany, Hungary |
|---|
Physical Attributes
| Cable Length | 50 m |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM |
|---|---|
| Connector Type | RJ45, M23 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 2 kg CO2 eq., 1.8918211307 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 25 kg CO2 eq., 24.7882830916 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Traceability | No |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1409023EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | PacDrive 3 |
| Software Version | EIME v5.8.1 |
| Total Lifecycle Carbon Footprint | 29 kg CO2 eq. |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To transmit data and signals on a distance of one meter during 10 years and a 100% use rate to control, measure and regulate equipments |
| Functional-unit Unit | each |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Germany |
| Energy Model - Use [B6] | Electricity mix; AC; < 1kV; EU-27 |
| Accessory / Separate Part Category | connection accessories |
| Package Weight(Lbs) | 2.978 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 0.4367298695, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0052785086, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 2 kg CO2 eq., 2.179211659 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Serviceability | No |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 3 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Product Or Component Type | encoder cable |
| Returnability | Yes |
| Sustainable Packaging | No |
| Pep Code | ENVPEP1409023EN |
| Pep Verification Date | 2020-11-01 |
| Psr Version | PSR-0001-ed3-EN-2015 10 16 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; < 1kV; EU-27 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8544429090 |
Environment Attributes Main
| Product Compatibility | LXM 62 servo drive, LXM 52 servo driveSH3 servo motor, MH3 servo motor |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1409023EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1409023EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 29.3013242594 |
| Environmental Disclosure | ENVPEP1409023EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2020-11-01 |
| Psr Version | PSR-0001-ed3-EN-2015 10 16 |
General Attributes
| Product Or Component Type | encoder cable |
|---|
| Range Of Product | PacDrive 3 |
|---|
ETIM
| ETIM 8 | EC002584 |
|---|
| ETIM 9 | EC002584 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
