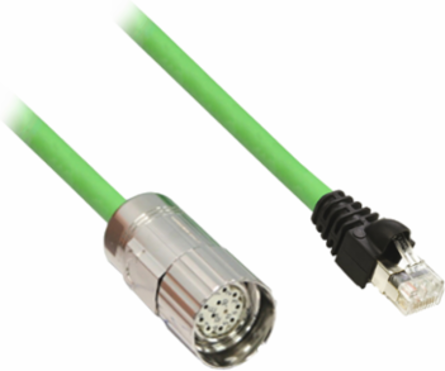

Schneider Electric VW3E2094R250 Encoder Cable 25 m for SH3/MH3 Servo Motors & Lexium 52/62, RJ45 & M23 Connectors
- MPN: VW3E2094R250
- PPN: SCH-VW3E2094R250
CAD
$377.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium 52 & Motors range, an offer of connection accessories for Lexium 62 and Lexium 52. This encoder cable is an accessory for SH3/MH3 servo motor and Lexium 52/Lexium 62 servo drive. The length of this cable is 25m. It is furnished with RJ45 and M23 industrial connector for electrical connection. It weighs 1.735kg. This range is compatible with Lexium 62 and Lexium 52. The product compatible with LXM 62 servo drive, LXM 52 servo drive, SH3 servo motor and MH3 servo motor. Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Germany, Hungary, United States |
|---|
Physical Attributes
| Cable Length | 25 m |
|---|
Important Information Attributes
| Connector Type | RJ45, M23 |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.9 kg CO2 eq., 0.8522975552 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 11 kg CO2 eq., 11.167542604 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Traceability | No |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1409023EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | PacDrive 3 |
| Software Version | EIME v5.8.1 |
| Total Lifecycle Carbon Footprint | 13 kg CO2 eq. |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To transmit data and signals on a distance of one meter during 10 years and a 100% use rate to control, measure and regulate equipments |
| Functional-unit Unit | each |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Germany |
| Energy Model - Use [B6] | Electricity mix; AC; < 1kV; EU-27 |
| Accessory / Separate Part Category | connection accessories |
| Package Weight(Lbs) | 1.525 kg |
| Warranty (In Months) | 18 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.1967542248, 0.2 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase [A5] | 0.0023780578, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 1 kg CO2 eq., 1.1169666849 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Serviceability | No |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Product Or Component Type | encoder cable |
| Returnability | Yes |
| Sustainable Packaging | No |
| Pep Code | ENVPEP1409023EN |
| Pep Verification Date | 2020-11-01 |
| Psr Version | PSR-0001-ed3-EN-2015 10 16 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; < 1kV; EU-27 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8544422000 |
Environment Attributes Main
| Product Compatibility | LXM 62 servo drive, LXM 52 servo driveSH3 servo motor, MH3 servo motor |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1409023EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1409023EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 13.3359391267 |
| Environmental Disclosure | ENVPEP1409023EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2020-11-01 |
| Psr Version | PSR-0001-ed3-EN-2015 10 16 |
General Attributes
| Product Or Component Type | encoder cable |
|---|
| Range Of Product | PacDrive 3 |
|---|
ETIM
| ETIM 8 | EC002584 |
|---|
| ETIM 9 | EC002584 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
