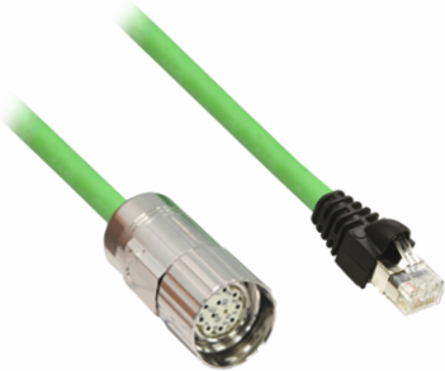

Schneider Electric VW3E2094R050 Encoder Cable for SH3/MH3 Servo Motor & Lexium 52/62, 5 m, RJ45 & M23 Connectors
- MPN: VW3E2094R050
- PPN: SCH-VW3E2094R050
CAD
$179.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Lexium 52 & Motors range, an offer of connection accessories for Lexium 62 and Lexium 52. This encoder cable is an accessory for SH3/MH3 servo motor and Lexium 52/Lexium 62 servo drive. The length of this cable is 5m. It is furnished with RJ45 and M23 industrial connector for electrical connection. It weighs 0.415kg. This range is compatible with Lexium 62 and Lexium 52. The product compatible with LXM 62 servo drive, LXM 52 servo drive, SH3 servo motor and MH3 servo motor. Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, Germany, France, Hungary
Physical Attributes
- Cable Length
- 5 m
Important Information Attributes
- Connector Type
- RJ45, M23
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.2146113188
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 3 kg CO2 eq., 2.8120238426
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Traceability
- No
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1409023EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- PacDrive 3
- Software Version
- EIME v5.8.1
- Total Lifecycle Carbon Footprint
- 3 kg CO2 eq.
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To transmit data and signals on a distance of one meter during 10 years and a 100% use rate to control, measure and regulate equipments
- Functional-unit Unit
- each
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Germany
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27
- Accessory / Separate Part Category
- connection accessories
- Package Weight(Lbs)
- 397.000 g
- Warranty (In Months)
- 18
Carbon Footprint Of The Distribution Phase [A4]0.0495433589, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0005988027, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0.2 kg CO2 eq., 0.2472133758
Local Publishable Date2026-01-12
Stocking FlagY
ServiceabilityNo
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Product Kit IdentifierN
Product Or Component Typeencoder cable
ReturnabilityNo
Sustainable PackagingNo
Pep CodeENVPEP1409023EN
Pep Verification Date2020-11-01
Psr VersionPSR-0001-ed3-EN-2015 10 16
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Product Compatibility
- LXM 62 servo drive, LXM 52 servo drive, SH3 servo motor, MH3 servo motor
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1409023EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1409023EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint3.3239906988
Environmental DisclosureENVPEP1409023EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2020-11-01
Psr VersionPSR-0001-ed3-EN-2015 10 16
General Attributes
- Product Or Component Type
- encoder cable
Range Of ProductPacDrive 3
ETIM
- ETIM 8
- EC002584
ETIM 9EC002584
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
