Weidmuller 1857440000 ESG 9/11 K MC NE WS
- MPN: 1857440000
- PPN: WDM-1857440000
CAD
$0.31
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

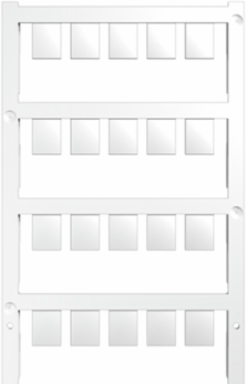

ESG, Device markers x 11 mm, PA 66, Colour: white, Self-adhesive
Documentation & Downloads
Specifications
General Data
| Adhesive | Double-sided adhesive tape |
|---|---|
| Colour | white |
| Material | PA 66 |
| Operating temperature range | -40...100 °C |
| Version | Self-adhesive |
| compatible printer | 1324380000 |
| Application/manufacturer | Self-adhesive |
|---|---|
| Halogen | No |
| Material colour according to resistance code | 9 |
| UL 94 flammability rating | V-2 |
| Width | 11 mm |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 11 mm |
|---|---|
| Height | 9 mm |
| Depth | 0.8 mm |
| Net weight | 0.45 g |
| Width (inches) | 0.433 inch |
|---|---|
| Height (inches) | 0.354 inch |
| Depth (inches) | 0.031 inch |
Classifications
| ETIM 6.0 | EC001288 |
|---|---|
| eClass 9.0 | 27-40-06-29 |
| eClass 10.0 | 27-40-06-29 |
| ETIM 7.0 | EC001288 |
|---|---|
| eClass 9.1 | 27-40-06-29 |
| UNSPSC | 30-21-18-01 |
Temperatures
| Operating temperature range | -40...100 °C |
|---|---|
| Operating temperature range, min. | -40 °C |
| Operating temperature range, max. | 100 °C |
|---|
Labelling Systems
| Application/manufacturer | Self-adhesive |
|---|
| Version | Self-adhesive |
|---|
