Weidmuller 1038890000 ESG X20 MC SDR
- MPN: 1038890000
- PPN: WDM-1038890000
CAD
$0.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

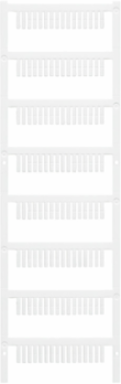

ESG, Device markers x 10 mm, PA 66, Colour: To customer specification, pluggable
Specifications
General Data
| Application/manufacturer | B&R X20 System |
|---|---|
| Colour of printing | black |
| Material | PA 66 |
| Printed characters | Based on customer requirements (Please send M-Print PRO file) |
| UL 94 flammability rating | V-2 |
| Width | 10 mm |
| Colour | To customer specification |
|---|---|
| Halogen | No |
| Operating temperature range | -40...100 °C |
| Printing method | MC Laser |
| Version | pluggable |
| compatible printer | 1324380000 |
Dimensions And Weights
| Width | 10 mm |
|---|---|
| Height | 2.5 mm |
| Depth | 0.8 mm |
| Net weight | 0.05 g |
| Width (inches) | 0.394 inch |
|---|---|
| Height (inches) | 0.098 inch |
| Depth (inches) | 0.031 inch |
Classifications
| ETIM 6.0 | EC001288 |
|---|---|
| eClass 9.0 | 27-40-06-29 |
| eClass 10.0 | 27-40-06-29 |
| ETIM 7.0 | EC001288 |
|---|---|
| eClass 9.1 | 27-40-06-29 |
| UNSPSC | 30-21-18-01 |
Approvals
| ROHS | Conform |
|---|
