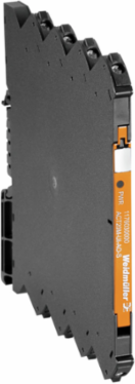

Weidmuller 1176030000 Universal Signal Converter, 2-4 Wire RTD/Thermocouple, 80g Weight, 114.3mm Depth
- MPN: 1176030000
- PPN: WDM-1176030000
CAD
$523.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

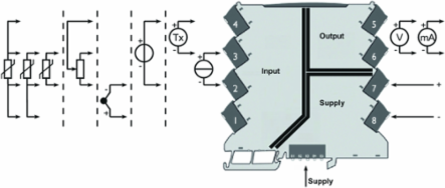

Signal converter/insulator, Temperature converter, universal, 2-/3-/4- wire RTD, Thermocouple, Input : universal U, I, R,ϑ, Output : I / U
Documentation & Downloads
Specifications
General Data
- Accuracy
- < 0.1 % of measuring range
- Galvanic isolation
- 3-way isolator
- Power consumption, typ.
- 0.84 W
- Step response time
- 400 ms (10...90%) @ U/I, 1 s @ temp
- Voltage supply
- 24 V DC ± 30 %

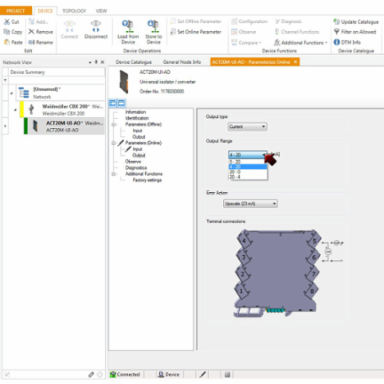

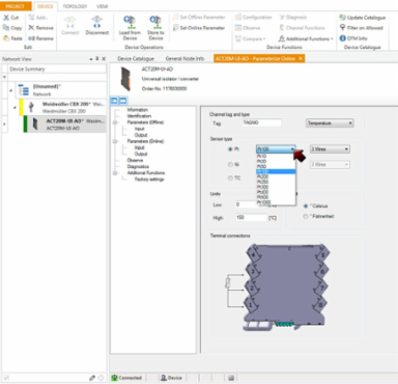

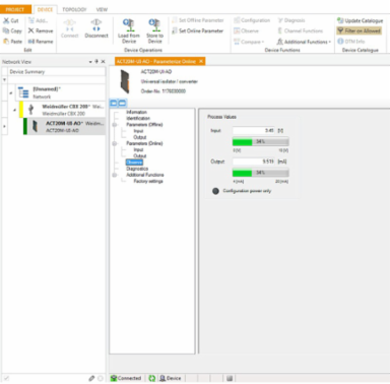

ConfigurationWith FDT/DTM software
Power consumption, max.1.2 W
RailTS 35
Temperature coefficient≤ 0.01 % / °C
Probability Of Failure
- MTBF
- 176 Years
Approvals
- Approvals
- CULUS, DETNORVER, DNV GL, EAC, FMEX, IECEXKEM, KEMAATEX
- UL File Number Search
- E337701
ROHSConform
Dimensions And Weights
- Width
- 6.1 mm
- Height
- 112.5 mm
- Depth
- 114.3 mm
- Net weight
- 80 g
Width (inches)0.24 inch
Height (inches)4.429 inch
Depth (inches)4.5 inch
Connection Data
- Type of connection
- Screw connection
- Tightening torque, max.
- 0.6 Nm
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 30
Tightening torque, min.0.4 Nm
Clamping range, rated connection2.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 14
Rated Data Ul
- UL certificate
- E337701.pdf
Tender Specification Sheets
- Long specification
- Universal measurement isolating transformeruniversal measurement isolating transformer in 6.1 mm width with external power and sensor power supplyto transmit and isolate analogue DC currents 0/4 to 20 mA / voltages 0/2 to 10 V, 2-/3-/-4- wire RTD, resistances, potentiometers and thermocouples according toIEC584. The module can be programmed via software using standard FDT/DTM tools.Add-on housing for TS35 DIN rail installationDimensions: L/W/H 114.3/ 6.1/ 112.5 mmScrew connection / nominal cross-section 2.5 mm2Protection degree: IP20 Input0/4...20 mA 0/2...10 V PT100, PT1000, Ni100, Ni1000 Resistance/ potentiometer 10 Ohm...10 kOhm Thermocouples type B, E, J, K, L, LR, N, R, S, T, U, W3, W5Sensor supply > 15 VDC at 20 mAOutput 0/4...20 mA 0/2...10 VLoad resistance 10 kOhm/ voltageTransmission error< 600 Ohm/ Strom/>Step response time10...90 % Auxiliary power 24 VDC +/- 30 %Power loss approx. 1.2 WAmbient< 0,1 % v. E. (DC, RTD)temperature range -25 °C...+70 °C Isolation EN 61010-1, 3-way isolation up to 2.5 kV AC/DC of all circuits against each otherTest voltage 2.5 kV input against output against auxiliary powerRated voltage 300 V AC/DC at overvoltage category II and pollution degree 2Approvals cULus, FM Div2, ATEX Zone2, DNV, GLType ACT20M-UI-AO-S
Short specificationUniversal measurement isolating transformeruniversal measurement isolating transformer in 6.1 mm width with external power and sensor power supply for transmitting and isolating analogue DC currents 0/4 to 20 mA / voltages 0/2 to 10 V, 2-/3-/-4- wire RTD, resistances, potentiometers and thermocouples according to IEC584. The component can be programmed via software using standard FDT/DTM tools.
Input
- Number of inputs
- 1
- Sensor supply
- > 15 V DC at 20 mA
- Input resistance, voltage
- > 10 MΩ
- Voltage drop, current input
- < 3 V
- Resistance
- 0…10 kΩ

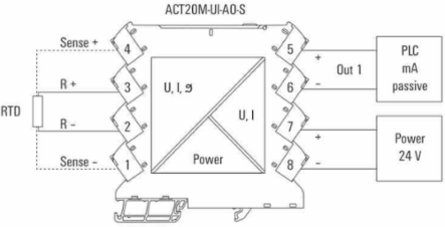

SensorThermocouples: B / C / E / J / K / L / N / R / S / T / W3 / W5- 200...+ 2300 °C depending on thermocouple, RTD: PT10, PT20, PT50, PT100, PT250, PT300, PT400, PT500, PT1000, Ni50, Ni100, Ni120, Ni1000, 2-/3-/4-wire
Input voltageconfigurable, 0(2)…10 V, 0(1)…5 V, 0…1 V DC, 0,2…1 V DC
Input currentconfigurable, 0...20 mA, 4…20mA
Temperature input rangeConfigurable, min. measurement range 10°C (RTD), min. measurement range 50°C (TC), PT100: -200°C…850 °C, NI100: -60°C…+250 °C, TC type: B (0…+1820 °C), E: (-100…+1000 °C), J: (-100…+1200 °C), K: (-180…+1372 °C), L: (-200…+900 °C), N: (-180…+1300 °C), R: (-50…+1760 °C), S: (-50…+1760 °C), T: (-200…+400 °C), U: (-200…+600 °C), W3: (0…+2300 °C), W5: (0…+2300 °C), LR: (-200…+800 °C), Details under Downloads "Measuring range Table ACT20M-UI-AO"
Potentiometer10…100 kΩ
Classifications
- ETIM 6.0
- EC002653
- eClass 9.0
- 27-21-01-20
- eClass 10.0
- 27-21-01-20
ETIM 7.0EC002653
eClass 9.127-21-01-90
Output
- Number of outputs
- 1
- Output current
- configurable, 0...20 mA, 4...20 mA, 20…0 mA, 20…4 mA, downscale (3,5 mA), upscale (23 mA), in case of sensor error
- cold junction compensation
- internal
- load impedance current
- ≤ 600 Ω, @ max 28mA
Output voltage, noteconfigurable, 0(2)...10 V, 0(1)...5 V, 0(0,2)…1 V, 1…(0,2)0 V, 5…(1)0 V, 10…(2)0 V, downscale (0 V), upscale (11 V), in case of sensor error
Cut-off frequency (-3 dB)100 Hz
load impedance voltage≥ 10 kΩ
Product Information
- Product information

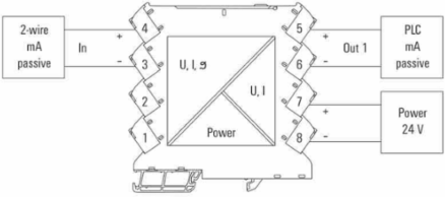

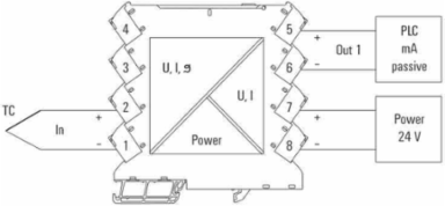

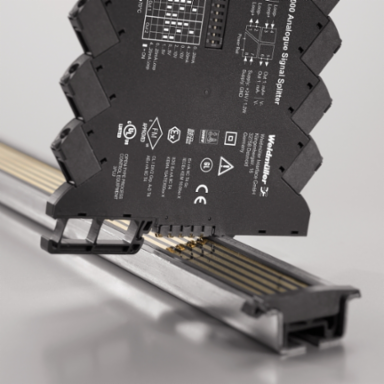

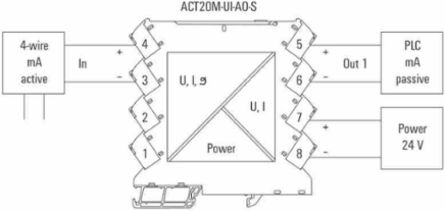

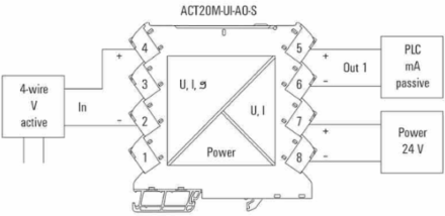

- The software configurable Universal Transmitter ACT20M-UI-AO-S separates and converts standard analogue signals. An analogue input signal (voltage, current, resistance, potentiometer, RTD, TC) is converted linear and galvanic isolated into an analogue output signal. The input may also operate as an active current loop (the loop current provided by the device). The power supply is galvanically isolated from input and output and happens via a direct wiring or the Weidmüller DIN Rail Bus (3-way isolation).
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Data For Ex Applications (Atex)
- Marking
- II 3 G Ex nA IIC T4 Gc
Insulation Coordination
- EMC standards
- IEC 61326-1, NE 21
- Insulation voltage
- 2.5 kVeff /1 min.
- Rated voltage
- 300 Veff
Galvanic isolation3-way isolator
Pollution severity2
Surge voltage categoryII
Temperatures
- Humidity
- 40 °C / 93 % rel. humidity, no condensation
- Operating temperature, min.
- -25 °C
- Storage temperature, min.
- -40 °C
- Ambient temperature
- -25 °C...+70 °C
Operating temperature, max.70 °C
Storage temperature, max.85 °C
Operating temperature-25 °C...70 °C
Storage temperature-40 °C...85 °C
Ratings Iecex/Atex/Cul
- Certificate No. (ATEX)
- KEMA10ATEX0183X
- Certificate no. (cULus)
- E337701
Certificate No. (IECEX)IECEXKEM10.0090X
