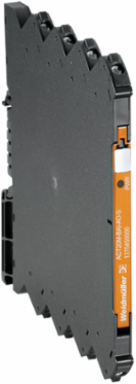

Weidmuller 1375450000 Bipolar Signal Converter 1-Channel, 6.1mm Width, Configurable Input/Output

MPN: 1375450000
PPN: WDM-1375450000

$385.57

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Signal converter/insulator, Configurable, Input : I/U/bidirectional I, Output : I/U/bidirectional I

Documentation & Downloads

Specifications

General Data

Accuracy	< 0.05 % of measuring range
Galvanic isolation	4-way isolator;
Power consumption, typ.	0.56 W
Step response time	≤ 7 ms, ≤ 100 ms, Configurable
Voltage supply	24 V DC ± 30 %

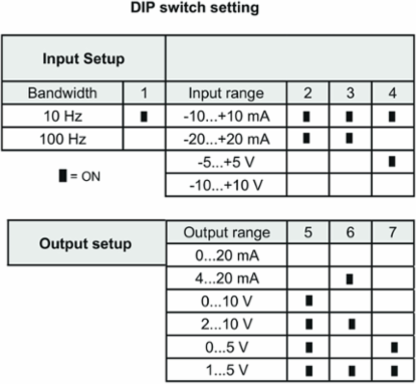

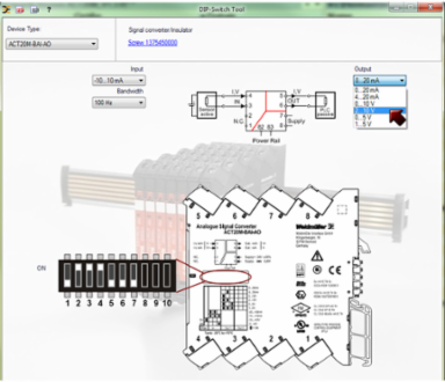

Configuration	DIP switch
Power consumption, max.	0.8 W
Rail	TS 35
Temperature coefficient	< 0.01% of span/°C (TU)

Probability Of Failure

MTBF	181 Years

Approvals

Approvals	CULUS, DETNORVER, DNV GL, EAC, FMEX, IECEXKEM, KEMAATEX
UL File Number Search	E337701

ROHS	Conform

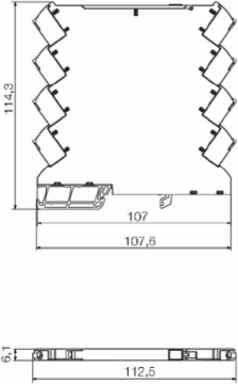

Dimensions And Weights

Width	6.1 mm
Height	112.5 mm
Depth	114.3 mm
Net weight	80 g

Width (inches)	0.24 inch
Height (inches)	4.429 inch
Depth (inches)	4.5 inch

Connection Data

Type of connection	Screw connection
Tightening torque, max.	0.6 Nm
Clamping range, min.	0.5 mm²
Wire connection cross section AWG, min.	AWG 30

Tightening torque, min.	0.4 Nm
Clamping range, rated connection	2.5 mm²
Clamping range, max.	2.5 mm²
Wire connection cross section AWG, max.	AWG 14

Rated Data Ul

UL certificate	E337701.pdf

Tender Specification Sheets

Short specification	Bipolar standard signal converter 1-channel signal converter, 6.1 mm wide, with external voltage supply, for transmission and isolation of analogue DC current signals +/- 10 mA or +/- 20 mA and voltage signals +/- 5 V or +/- 10 V. Input and output signals can be configured with DIP switches.

Input

Number of inputs	1
Input voltage	configurable, -5 V…0…+5 V, -10 V…0…+10 V
Input current	configurable, -10 mA…0…+10 mA, -20 mA…0…+20 mA

Sensor	Voltage source, Current source
Input resistance, voltage	≥ 1 MΩ
Voltage drop, current input	1 V at 20 mA

Classifications

ETIM 6.0	EC002653
eClass 9.0	27-21-01-20
eClass 10.0	27-21-01-20

ETIM 7.0	EC002653
eClass 9.1	27-21-01-20

Output

Number of outputs	1
Output current	configurable, 0...20 mA, 4...20 mA
load impedance voltage	≥ 10 kΩ

Output voltage, note	configurable, 0(2)...10 V, 0(1)...5 V
Cut-off frequency (-3 dB)	≥ 100 Hz, 10 Hz
load impedance current	≤ 600 Ω

Product Information

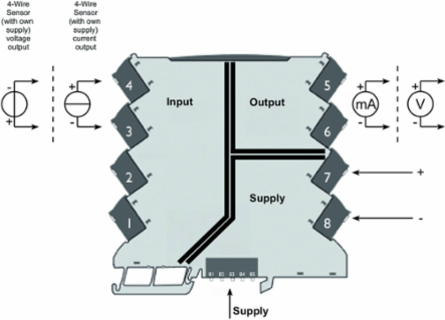

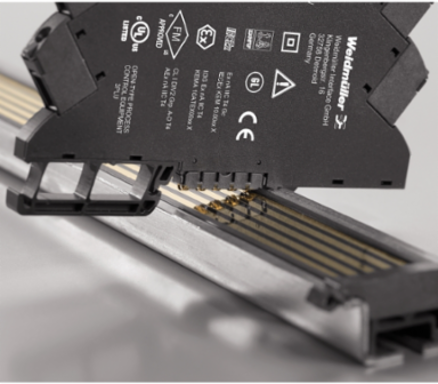

Product information	The configurable DC-Converter ACT20M-BAI-AO-S separates and converts standard analogue signals. An analogue input signal is converted linear and galvanic isolated into an analogue output signal. The power supply is galvanically isolated from input and output and happens via a direct wiring or the Weidmüller DIN Rail Bus (3-way isolation).

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

Data For Ex Applications (Atex)

Marking	II 3 G Ex nA IIC T4 Gc

Insulation Coordination

EMC standards	IEC 61326-1, NE 21
Insulation voltage	2.5 kVeff /1 min.
Rated voltage	300 Veff

Galvanic isolation	4-way isolator;
Pollution severity	2
Surge voltage category	II

Temperatures

Humidity	40 °C / 93 % rel. humidity, no condensation
Operating temperature, min.	-25 °C
Storage temperature, min.	-40 °C
Ambient temperature	-25 °C...+70 °C
