Schneider Electric VW3A3616 Altivar Ethernet Communication Module, 10/100 Mbps, 2 x RJ45 Connectors

  • MPN: VW3A3616
  • PPN: SCH-VW3A3616
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $449.28

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

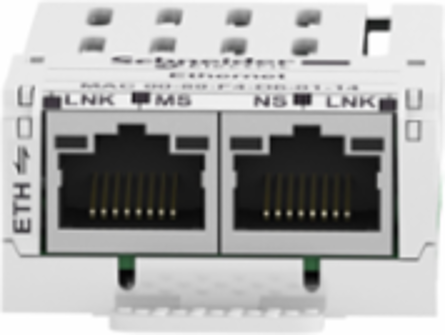

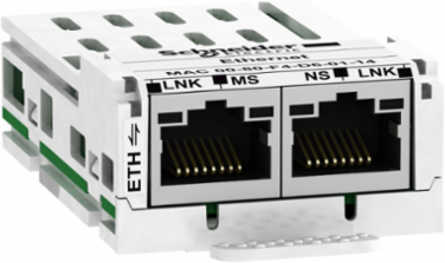

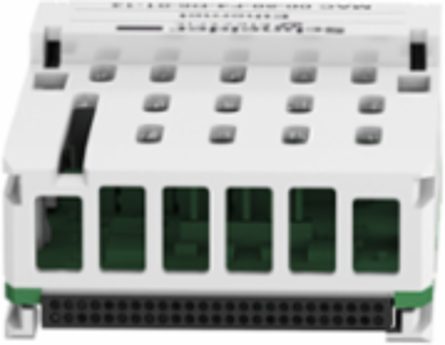

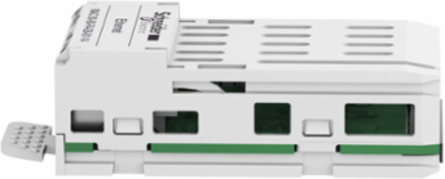

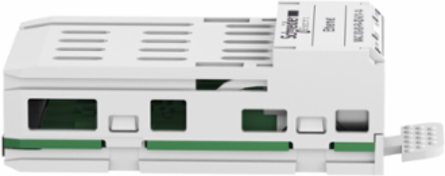

    This Altivar Ethernet TCP/IP communication module has 2 ports with RJ45 connectors. It is compatible with Altivar Machine ATV320, Lexium 32 and Altivar 32. Removable module allows last minute decisions on drive communication protocol and thus facilitates installation project management.

    Documentation & Downloads

    Specifications

    Additional

    Communication Protocol
    Modbus TCP, EtherNet/IP
    Exchange Mode
    Half duplex and full duplex
    Electrical Connection
    1 connector RJ45 EtherNet/IP, 1 connector RJ45 Modbus TCP
    Net Weight
    0.3 kg (0.66 lb)
    Product Compatibility
    Lexium 32M
    Material Compliance
    RoHS Exemption: Yes, EU RoHS Directive: Pro-active compliance, REACH: Contains SVHC above threshold, China RoHS: X, Toxic Heavy Metal Free: Yes, Mercury Free: Yes, PVC Free: Yes
    Sustainable Status
    Green Premium product
    Country of Origin
    China
    Transmission Rate10/100 Mbps
    Communication ServiceUp to 8 connections (includes Modbus TCP/Ethernet IP connections, SNMP agent, FDR agent, diagnostics, I/O scanner, read/write registers)
    Display Type1 LED Module Status, 1 LED Network Status, 1 LED Ethernet port activity, 1 LED Modbus TCP port activity
    Range CompatibilityAltivar Machine ATV320, Altivar 32, Lexium 32
    Product TypeCommunication module
    Environmental DisclosureENVPEP2010006EN
    Warranty18 months
