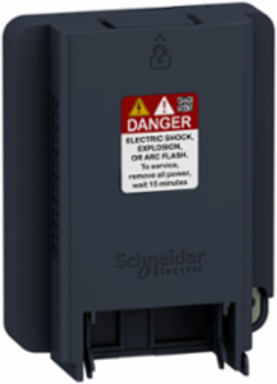

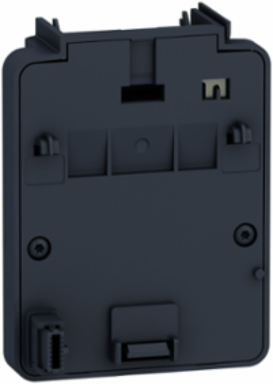

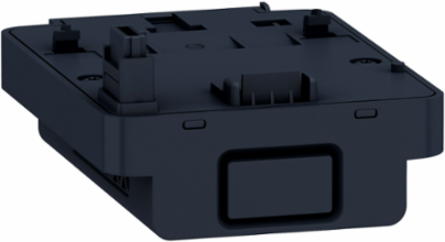

Schneider Electric VW3A3600 Mechanical Adapter for Altivar Machine ATV320, Green Premium Product

MPN: VW3A3600
PPN: SCH-VW3A3600

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$79.08

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

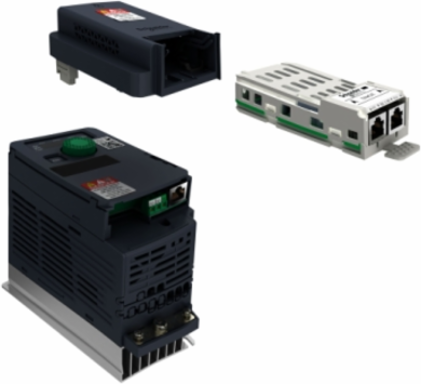

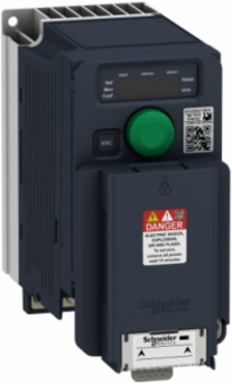

This Altivar mechanical adapter enables installation of communication modules for Alitvar 320 drives. Compatible with the entire range of communication modules, eliminating need for multiple devices.

Features

This dedicated communication module enables seamless integration of Schneider Electric Altivar Variable Speed Drives into any Profinet DP network architecture. By establishing high-speed data exchange with your PLC, you gain real-time control over motor parameters and system diagnostics, ensuring your industrial automation line operates with maximum synchronization and efficiency.
Designed as a direct-insert option card, the VW3A3600 eliminates the need for complex external gateways or messy protocol converters. It fits securely into the dedicated communication slot of Altivar 32, 320, or Lexium 32 series drives, allowing for a clean, professional control cabinet layout while significantly reducing installation time and potential wiring errors.
This module provides a transparent window into drive performance, transmitting detailed error codes, current load data, and thermal status directly to your HMI or SCADA system. Accessing this granular data remotely allows maintenance engineers to identify root causes and perform virtual troubleshooting without having to manually probe live electrical components inside the drive enclosure.
Fully compatible with standard GSD configuration files, this module ensures instant recognition within TIA Portal or Step 7 programming environments. This "standard-ready" compatibility streamlines the commissioning phase of your project, allowing for rapid parameter mapping and logic assignment, which gets your production machinery up and running faster with verified data integrity.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Indonesia, Sweden, Singapore, United States

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Kit Composition	mechanical adaptor with pluggable connector, earthing cable
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1 kg CO2 eq., 0.057285
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	1 kg CO2 eq., 1.4182
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Manufacturing Carbon Footprint	1.4182
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Range Of Product	Altivar
Software Version	EIME v5.9.3
Total Lifecycle Carbon Footprint	2 kg CO2 eq.
Database Version	2020-12
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Connect communication modules to Altivar Machine ATV320 drives for 20 years.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Energy model used: Indonesia
Energy Model - Use [B6]	Electricity mix; AC; < 1kV; EU-27
Recyclability Potential In %	12
Accessory / Separate Part Destination	variable speed drive
Carbon Footprint (Kg Co2 Eq Total Life Cycle)	1.5161
Package Weight(Lbs)	223.000 g
Warranty (In Months)	18
Air Pollution (M3) Manufacturing [A1-a3]	155.09
Air Pollution (M3) End Of Life [C1-c4]	1.3425
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]	18.11
Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]	1.4182
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]	1.6251
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]	27.068
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]	27.876
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	3.8033
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	23.265
Water Pollution (M3) Manufacturing [A1-a3]	241.37
Water Pollution (M3) Installation [A5]	1.39
Customs Code	8536904000

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Carbon Footprint Of The Distribution Phase [A4]	0.031043, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0095781, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-03-26
Stocking Flag	N
Device Type	Variable speed drive - VSD option & accessory
Traceability	No
Weee Applicability	Component
Weee Exclusion Rationale	Component not in scope – non independent function
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1929
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Sustainable Packaging	No
Pep Code	ENVPEP2010016EN
Pep Verification Date	2022-06-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	referent product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; < 1kV; EU-27
Accessory / Separate Part Category	mounting and fixing accessories
Accessory / Separate Part Type	adapter
Nbr. Of Units In Pkg.	1
Take-back	No
Air Pollution (M3) Total Life Cycle	158.27
Air Pollution (M3) Distribution [A4]	1.3205
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle	18.813
Global Warming (Kg.Equivalent.Co2) Total Life Cycle	1.5161
Non-hazardous Waste Disposed Of (Kg) Total Life Cycle	1.6437
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle	27.819
Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle	28.628
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle	3.8033
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle	24.016
Water Pollution (M3) Total Life Cycle	258.21
Water Pollution (M3) Distribution [A4]	5.1049
Water Pollution (M3) End Of Life [C1-c4]	10.351

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Carbon Footprint	1.5161
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2022-06-01
Psr Version	PSR-0005-ed2-EN-2016 03 29

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2010016EN
Packaging Made With Recycled Cardboard	No
Product Compatibility	variable speed drive ATV320...C
Pep Code	ENVPEP2010016EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
