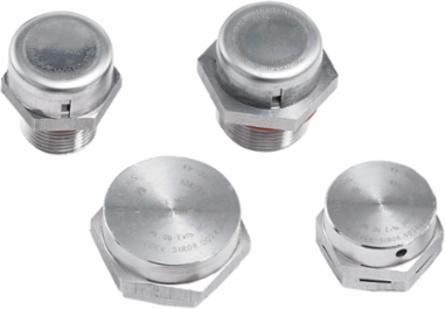

Nvent Hoffman EXDBDM25SS6 Hazardous Location Breather Drain, 40x40x25mm, Stainless 316, M25 Thread

Hazardous Location Breather Drain, 40x40x25mm, Stainless 316, M25 Thread
  • MPN: EXDBDM25SS6
  • UPC: 783510271688
  • PPN: HOF-EXDBDM25SS6
  • UNSPSC: 39121321

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$365.08/ EA

Description

Hazardous Location Breather Drains allow enclosure air to breathe preventing condensation. This Hazardous Location Breather Drain M25 Ex d, EXDBDM25SS6 item measures 40x40x25mm with a material of Stainless 316.

Features

  • Reduce corrosion that can limit the life of internal electrical and electronic components
  • Prevent condensation when installations are subject to fluctuations in temperature in hazardous locations
  • Effectively drain any water present within the enclosure
  • Minimize moisture build-up within the enclosure by allowing air in the enclosure to breathe with surrounding atmosphere
  • Position at the lowest point of an enclosure to ensure optimal draining of any moisture
  • Maintain enclosure's UL Type rating when properly installed
  • Available for Increased Safety (Ex e) and Flameproof (Ex d) applications
  • Ex e Breather Drains:
  • Includes castellated nut and nitrile O-ring
  • 10mm thread length
  • Install in a clearance hole 0.5 to 1.0mm larger than major diameter, or in a tapped hole
  • Operating temperature of -58 F (-50 C) to 185 F (85 C)
  • Ex d Breather Drains:
  • Includes silicone O-ring
  • 16mm thread length
  • Install in a tapped hole
  • Ex d Breather Drains operating temperature of -22 F (-30 C) to 302 F (150 C)

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
39
Finish
Brushed
Weight
0.1
Works With
NEMA & IEC
Size
40x40x25mm
Height (H)40
Depth (D)25
Thread TypeM25
Accessory TypeHazardous Location Accessories
MaterialSS Type 316
