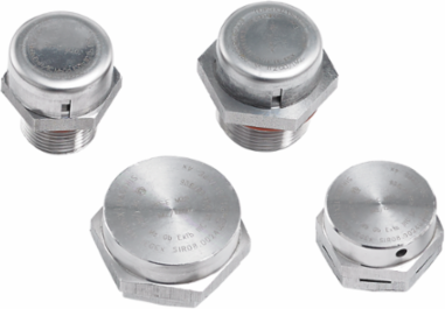

nVent Hoffman EXEBDM20SS6 Hazardous Location Breather Drain 40x40x25mm, Stainless Steel 316
- MPN: EXEBDM20SS6
- UPC: 783510271657
- PPN: HOF-EXEBDM20SS6
- UNSPSC: 39121321
CAD
$112.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Hazardous Location Breather Drains allow enclosure air to breathe preventing condensation. This Hazardous Location Breather Drain M20 Ex e, EXEBDM20SS6 item measures 40x40x25mm with a material of Stainless 316.
Features
- Reduce corrosion that can limit the life of internal electrical and electronic components
- Prevent condensation when installations are subject to fluctuations in temperature in hazardous locations
- Effectively drain any water present within the enclosure
- Minimize moisture build-up within the enclosure by allowing air in the enclosure to breathe with surrounding atmosphere
- Position at the lowest point of an enclosure to ensure optimal draining of any moisture
- Maintain enclosure's UL Type rating when properly installed
- Available for Increased Safety (Ex e) and Flameproof (Ex d) applications
- Ex e Breather Drains:
- Includes castellated nut and nitrile O-ring
- 10mm thread length
- Install in a clearance hole 0.5 to 1.0mm larger than major diameter, or in a tapped hole
- Operating temperature of -58 F (-50 C) to 185 F (85 C)
- Ex d Breather Drains:
- Includes silicone O-ring
- 16mm thread length
- Install in a tapped hole
- Ex d Breather Drains operating temperature of -22 F (-30 C) to 302 F (150 C)
Documentation & Downloads
Specifications
Additional
| Size | 40 x 40 x 25 mm |
|---|---|
| Thread Type | M20 |
| Finish | Brushed |
| O-ring Material | Nitrile, Silicone |
| Installation Hole | Clearance hole 0.5 to 1.0 mm larger than major diameter or tapped hole |
| Protection Type | Increased Safety (Ex e), Flameproof (Ex d) |
| Accessory Type | Hazardous Location Accessories |
| Material | Stainless Steel 316 |
|---|---|
| Weight | 0.2 lb |
| Operating Temperature | -58 F (-50 C) to 302 F (150 C) |
| Thread Length | 10 mm, 16 mm |
| Certifications | ATEX Zone 1 or 2, IECEx, cCSAus Class 1 Zone 1, NEMA Type 4, 4X, IP66 |
| Works With | NEMA & IEC |
