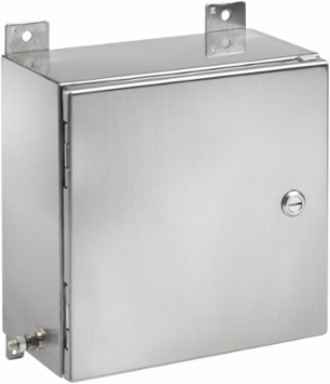

nVent Hoffman EXE242412SS61 ZonEx ATEX- and IECEx-Certified EXE Design Type 4X, 24x24x12, Brushed, SS 316
- MPN: EXE242412SS61
- UPC: 783510214883
- PPN: HOF-EXE242412SS61
- UNSPSC: 39121309
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Globally produced Zonex Enclosure certified to meet ATEX and IECEx standards for Zone 1 and Zone 2. This ZonEx ATEX- and IECEx-Certified EXE Design Type 4X, EXE242412SS61 item measures 24x24x12 in. with a material of SS 316, Brushed.
Features
- 10-mm brass internal/external bonding provision
- Type 316 stainless steel quarter-turn latch with slotted insert
- Large 3-mm-thick, flat gasketed gland plate(s)
- Continuous seal gasket on door and gland plate(s)
- Hardware for panel and bonding provisions included
- Operating temperature range: -40 C to +70 C standard polyurethane gasket
- Increased safety: Ex e. IECEx e certified
- 3-mm thick individual welded-on top and bottom wall-mounting brackets
Documentation & Downloads
Specifications
Additional
- Size
- 24 x 24 x 12 in
- Material
- SS Type 316
- NEMA Rating
- 4X Watertight, corrosion-resistant
- Protection Rating
- NEMA Type 12
- Width (W)
- 610 mm
- Thickness (T)
- 1.4 mm
- Latch Type
- Quarter-turn, slotted insert, 316 Stainless Steel
- Gasket Thickness
- 3 mm
- Mounting Bracket Thickness
- 3 mm welded-on, top and bottom
- Certification
- ATEX, IECEx
- Product Family
- Zonex
Weight52.5 lb
FinishBrushed #4
IP RatingIP66
Depth (D)305 mm
Height (H)610 mm
Latch Quantity2
Gasket MaterialPolyurethane
Bonding Provision Size10 mm Brass
Seal TypeContinuous seal gasket on door and gland plates
Operating Temperature Range-40 C to +70 C
