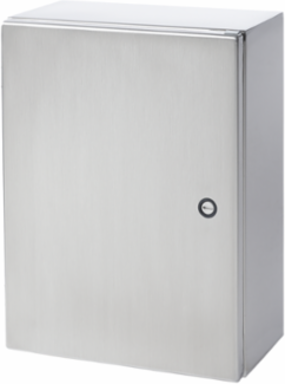

nVent Hoffman CSD302412SS Concept Wallmount Enclosure 30x24x12 Inch, Stainless Steel, NEMA 4X
- MPN: CSD302412SS
- UPC: 783510488406
- PPN: HOF-CSD302412SS
- UNSPSC: 39121324
CAD
$3684.15
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Concept SS enclosures are designed for indoor or outdoor applications in corrosion environments. This Concept Wallmount 1/4-Turn Latch Type 4X, CSD302412SS item measures 30x24x12 inch with a material of Stainless 304 finish Brushed.
Features
- Minimum-width body flange provides maximum body opening
- External formed 90-degree body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Type 316 stainless steel hidden hinges promote clean aesthetic appearance
- Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins
- Provision on door (except when B = 12 inch (305mm)) for thermoplastic data pocket
- Provision on door (except when B = 12 inch (305mm)) for optional doorstop kit
- Quarter-turn latches furnished with flush slotted insert
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
- Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wall-mounting hole
Documentation & Downloads
Specifications
Additional
| Size | 30.00 x 24.00 x 12.00 in |
|---|---|
| Material | Stainless Steel Type 304 |
| IP Rating | IP66 |
| Latch Type | Quarter-Turn, flush slotted insert |
| Body Thickness | 1.59 in |
| Height (H) | 762 mm |
| Depth (D) | 305 mm |
| Door Style | Corner formed, interchangeable |
| Hinges | Type 316 stainless steel, hidden |
| Grounding | Self-grounding latch system with double seal, bonding provision on door, grounding stud on body |
| Provision on Door | For thermoplastic data pocket and optional doorstop kit except when B = 12 in |
| Product Family | Concept |
| Protection Rating | NEMA Type 3R |
| Weight | 49 lb |
|---|---|
| NEMA Rating | 4X Watertight, corrosion-resistant |
| Latch Quantity | 2 |
| Mounting (G x H) | 724 x 572 mm |
| Door Thickness | 1.98 in |
| Width (W) | 610 mm |
| Finish | Brushed #4 satin |
| Body Flange | Minimum-width, external formed 90-degree |
| Gasket | Seamless foam-in-place gasket |
| Panel Mounting | Panel mounting studs fit optional Concept panels and accessories |
| Sub Brand | Concept |
| BABA | BABA Compliant |
