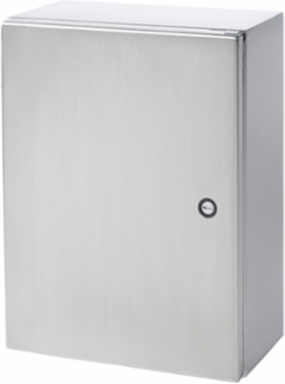

nVent Hoffman CSD363010SS Concept Wallmount 4X NEMA 3R Enclosure, 36x30x10 Inch, Stainless Steel
- MPN: CSD363010SS
- UPC: 783510128739
- PPN: HOF-CSD363010SS
- UNSPSC: 39121324
CAD
$4337.85
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Concept SS enclosures are designed for indoor or outdoor applications in corrosion environments. This Concept Wallmount 1/4-Turn Latch Type 4X, CSD363010SS item measures 36x30x10 inch with a material of Stainless 304 finish Brushed.
Features
- Minimum-width body flange provides maximum body opening
- External formed 90-degree body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Type 316 stainless steel hidden hinges promote clean aesthetic appearance
- Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins
- Provision on door (except when B = 12 inch (305mm)) for thermoplastic data pocket
- Provision on door (except when B = 12 inch (305mm)) for optional doorstop kit
- Quarter-turn latches furnished with flush slotted insert
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
- Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wall-mounting hole
Documentation & Downloads
Specifications
Additional
| Protection Rating | NEMA Type 3R, 4X Watertight, corrosion-resistant |
|---|---|
| Size | 36 x 30 x 10 in |
| Latch Type | Quarter-turn with flush slotted insert |
| Material | Type 304 Stainless Steel |
| Door Thickness | 1.98 mm |
| Weight | 83 lbs |
| Panel Type | Optional Concept panels |
| Hinges | Type 316 stainless steel hidden hinges |
| Window | Optional clear polycarbonate |
| IP Rating | IP66 |
|---|---|
| Mounting | Back of body mounting holes (876 x 724 mm, direct or external brackets) |
| Latch Quantity | 2 |
| Finish | Brushed #4 |
| Body Thickness | 1.59 mm |
| Product Family | Concept |
| Panel Size | 34.20 x 28.20 in |
| Sealing | Seamless foam-in-place gasket, self-grounding latch system with double seal |
| Bonding | Bonding provision on door; grounding stud on body |
