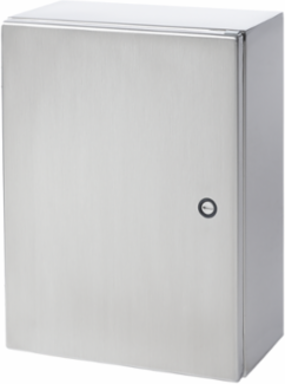

nVent Hoffman CSD363012SS Concept Wallmount Industrial Enclosure, 36 x 30 x 12 Inch, Stainless Steel 304
- MPN: CSD363012SS
- UPC: 783510488604
- PPN: HOF-CSD363012SS
- UNSPSC: 39121324
CAD
$4821.38
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Concept SS enclosures are designed for indoor or outdoor applications in corrosion environments. This Concept Wallmount 1/4-Turn Latch Type 4X, CSD363012SS item measures 36x30x12 inch with a material of Stainless 304 finish Brushed.
Features
- Minimum-width body flange provides maximum body opening
- External formed 90-degree body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Type 316 stainless steel hidden hinges promote clean aesthetic appearance
- Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins
- Provision on door (except when B = 12 inch (305mm)) for thermoplastic data pocket
- Provision on door (except when B = 12 inch (305mm)) for optional doorstop kit
- Quarter-turn latches furnished with flush slotted insert
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
- Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wall-mounting hole
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 762
- Protection Rating
- NEMA Type 3R
- Finish
- Brushed #4
- Door Thickness
- 1.98
- Latch Quantity
- 2
- Weight
- 88
- Sub Brand
- Concept
- Size
- 36.00x30.00x12.00 in
Height (H)914
Depth (D)305
Product FamilyConcept
Body Thickness1.98
Mounting (G x H)876 x 724
IP RatingIP66
Latch TypeQuarter-Turn
MaterialStainless Steel
NEMA Rating4X Watertight, corrosion-resistant
